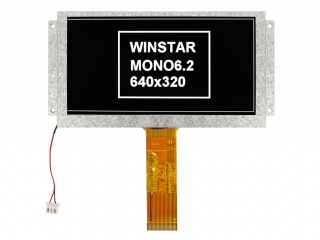

| Nombor Bahagian | WF62ATXGRDNN0 |
| Jenama | Winstar |
| Saiz | 6.2 |
| Permohonan | Industrial |
| Resolusi | 640×320 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | Grayscale |
| Lampu latar | WLED |
| Antara muka | 8-bit |
| pengilang | Winstar |
| nama model | WF62ATXGRDNN0 |
| saiz skrin | 6.2 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 640×320 116PPI |
| susunan | Rectangle |
| kawasan aktif (mm) | 140 × 70 (H×V) |
| garis besar (mm) | 170.32 × 83.3 × 5.6 (H×V×D) |
| kawasan bezel (mm) | 141.6 × 73.4 (H×V) |
| rawatan | Glare (Haze 0%) |
| kecerahan | 600 cd/m² (Typ.) |
| nisbah kontras | 800 : 1 (Typ.) (TM) |
| sudut pandangan | - |
| tindak balas | - |
| pandangan yang baik di | Symmetry |
| mod kerja | VA, Normally Black, Transmissive |
| kedalaman warna | Grayscale |
| lampu latar | WLED , No Driver |
| jisim | - |
| digunakan untuk | Industrial |
| kadar segar semula | - |
| skrin sentuh | Without |
| jenis isyarat | 8-bit 6800/8080 parallel, 3/4-wire SPI , 22 pins FPC |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AT062TN12 | Innolux | 6.2 | |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| HSD062IDW1-A00 | HannStar | 6.2 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
