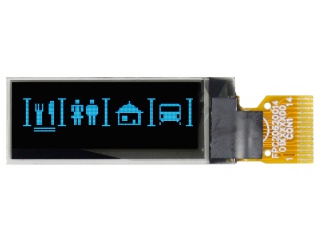

| Nombor Bahagian | WEO012832FS |
| Jenama | Winstar |
| Saiz | 0.91 |
| Permohonan | Wearable Instruments |
| Resolusi | 128×32 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antara muka | I²C |
| jenama panel | Winstar |
| model panel | WEO012832FS |
| saiz panel | 0.91" |
| jenis panel | PM-OLED, OLED |
| resolusi | 128×32, 145PPI |
| format piksel | Rectangle |
| kawasan paparan | 22.384(W)×5.584(H) mm |
| pembukaan bezel | 24.384(W)×7.58(H) mm |
| saiz garis besar | 30(W)×11.5(H) ×1.75(D) mm |
| permukaan | - |
| sudut pandangan | - |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | Mono(Blue) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COGBuilt-in SSD1306BZ |
| berat panel | - |
| permohonan | Wearable Instruments & Meters |
| antara muka isyarat | I²C , 15 pins FPC |
| voltan masukan | 3.0V (Typ.) |
| persekitaran | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
| DLC0090AZG | Other | 0.91 | 80×160 |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0068-R-E | Other | 0.91 | 128×32 |
| OEL9M0068-W-E | Other | 0.91 | 128×32 |
| OEL9M0068-Y-E | Other | 0.91 | 128×32 |
| OEL9M0084-B-E | Other | 0.91 | 128×32 |
| OEL9M0084-R-E | Other | 0.91 | 128×32 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| UG-2832HSWEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832KLBEG04 | WiseChip | 0.91 | 128×32 |
