Other OEL9M0068-W-E lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

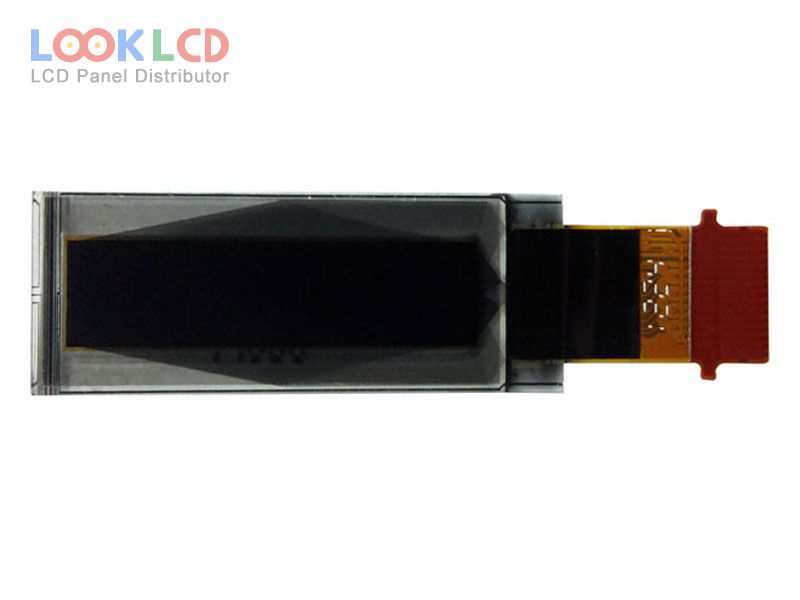

OEL9M0068-W-E

OEL9M0068-W-E
OEL9M0068-W-E thumb
Jenama
Other
Saiz
0.91
Permohonan
SB
Resolusi
128×32
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Mono(White)
Lampu latar
self
Antara muka
SPI/I²C
In Stock
14567
Spesifikasi

Nombor Bahagian OEL9M0068-W-E
JenamaOther
Saiz0.91
PermohonanSB
Resolusi128×32
KomposisiOLED
Kecerahan
CR10000:1
WarnaMono(White)
Lampu latarself
Antara mukaSPI/I²C
jenama panelTRULY
model panelOEL9M0068-W-E
jenis panel PM-OLED , OLED
saiz panel0.91 inch
resolusi128×32
kawasan aktif22.38×5.58 mm
garis besar30×11.5×1.6 mm
permukaan
kecerahan
nisbah kontras10000 : 1 (Min.)
warna paparanMono(White) (1-bit)
sudut pandangan80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
ic pemanduCOG Built-in SSD1307Z
antara muka isyaratSPI, I²C, 15 pins
permohonanSB
