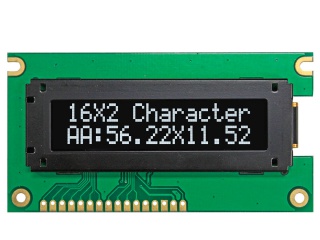

| Nombor Bahagian | WEO001602GW |
| Jenama | Winstar |
| Saiz | 2.3 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | 8-bit |
| pengilang | Winstar |
| nama model | WEO001602GW |
| saiz skrin | 2.3 inch |
| jenis skrin | OLED , PM-OLED |
| nombor char | 16 characters × 2 lines 7PPI |
| format char | 5×8 dots |
| char pitch(mm) | 3.55×5.95 (H×V) |
| saiz aksara (mm) | 2.97×5.57 (H×V) |
| kawasan aktif (mm) | 56.22 × 11.52 (H×V) |
| garis besar (mm) | 79 × 44 × 9.67 (H×V×D) |
| kawasan bezel (mm) | 58.22 × 13.52 (H×V) |
| rawatan | - |
| kecerahan | - |
| nisbah kontras | 2000 : 1 (Typ.) (TM) |
| sudut pandangan | 88/88/88/88 |
| tindak balas | 0.01 (Typ.) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | - |
| kedalaman warna | Mono(White) |
| lampu latar | self |
| jisim | - |
| digunakan untuk | Instruments & Meters |
| kadar segar semula | - |
| skrin sentuh | Without |
| senarai ic pemandu | Built-in COG SSD1311M1Z |
| jenis isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| bekalan voltan | 3.3/5.0V (Typ.)(VDD) |
