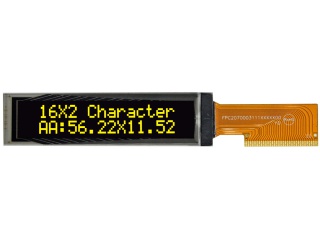

| Nombor Bahagian | WEO001602CL |
| Jenama | Winstar |
| Saiz | 2.3 |
| Permohonan | Instruments & Me |
| Resolusi | 16×27 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antara muka | 8-bit |
| jenama panel | Winstar |
| model panel | WEO001602CL |
| saiz panel | 2.3" |
| jenis panel | PM-OLED, OLED |
| format paparan | 16 characters × 2 lines, 7PPI |
| format fon | 5×8 dots |
| saiz watak | 2.97×5.57(W×H) mm |
| nada watak | 3.55×5.95(W×H) mm |
| kawasan paparan | 56.22(W)×11.52(H) mm |
| pembukaan bezel | 58.22(W)×13.52(H) mm |
| saiz garis besar | 68.5(W)×17.5(H) ×2.25(D) mm |
| permukaan | - |
| kecerahan | - |
| nisbah kontras | 2000:1 (Typ.) (TM) |
| sudut pandangan | 88/88/88/88 |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 0.01 (Typ.) |
| warna paparan | Mono(Yellow) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COG Built-in SSD1311M1Z |
| berat panel | - |
| permohonan | Instruments & Meters |
| antara muka isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 33 pins FPC |
| voltan masukan | 3.3/5.0V (Typ.)(VDD) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
