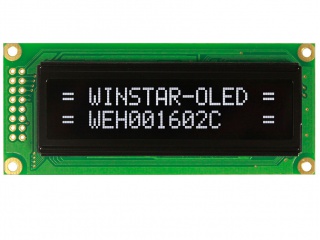

| Nombor Bahagian | WEH001602CW |
| Jenama | Winstar |
| Saiz | 2.3 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Red) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| pengilang | Winstar |
| nama model | WEH001602CW |
| saiz skrin | 2.3 inch |
| jenis skrin | OLED , PM-OLED |
| nombor char | 16 characters × 2 lines 7PPI |
| format char | 5×8 dots |
| char pitch(mm) | 3.6×6.3 (H×V) |
| saiz aksara (mm) | 2.95×5.55 (H×V) |
| kawasan aktif (mm) | 56.95 × 11.85 (H×V) |
| garis besar (mm) | 85 × 36 × 10 (H×V×D) |
| kawasan bezel (mm) | 66 × 16 (H×V) |
| rawatan | - |
| sudut pandangan | - |
| tindak balas | - |
| pandangan yang baik di | Symmetry |
| mod kerja | - |
| kedalaman warna | Mono(Red) |
| lampu latar | self |
| jisim | - |
| digunakan untuk | Instruments & Meters |
| kadar segar semula | - |
| skrin sentuh | Without |
| senarai ic pemandu | Built-in COB WS0010 |
| jenis isyarat | CPU/SPI , 15 pins Pad |
| bekalan voltan | 5.0V (Typ.) |
