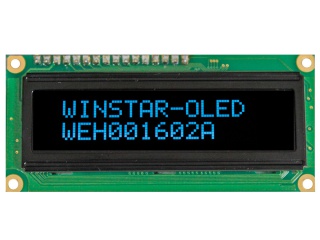

| Nombor Bahagian | WEH001602AS |
| Jenama | Winstar |
| Saiz | 2.3 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | 2000:1 |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antara muka | |
| jenama | Winstar |
| model | WEH001602AS |
| saiz pepenjuru | 2.3 inch |
| menaip | PM-OLED, OLED |
| format char | 5×8 dots |
| Saiz huruf | 2.95×5.55 mm |
| nada fon | 3.6×6.3 mm |
| kawasan aktif | 56.95(H)×11.85(V) mm |
| garis besar malap. | 80(H)×36(V) ×10(D) mm |
| kawasan bezel | 66(H)×16(V) mm |
| rawatan | - |
| kecerahan | - |
| nisbah kontras | 2000:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 0.01 (Typ.) |
| sudut pandangan | - |
| mod operasi | - |
| warna sokongan | Mono(Blue) |
| sumber cahaya | self |
| berat badan | - |
| direka untuk | Instruments & Meters |
| kadar bingkai | - |
| panel sentuh | Without |
| Operating Temperature: -40 ~ 80 °C - |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
