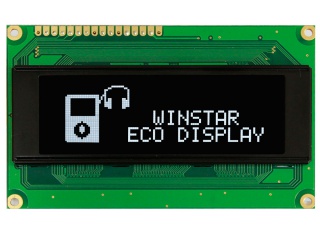

| Nombor Bahagian | WEG010032BW |
| Jenama | Winstar |
| Saiz | 2.4 |
| Permohonan | Instruments & Me |
| Resolusi | 100×32 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | Winstar |
| model panel | WEG010032BW |
| saiz panel | 2.4" |
| jenis panel | PM-OLED, OLED |
| resolusi | 100×32, 43PPI |
| format piksel | Rectangle |
| kawasan paparan | 58.95(W)×19.15(H) mm |
| pembukaan bezel | 77(W)×25.2(H) mm |
| saiz garis besar | 98(W)×60(H) ×10(D) mm |
| permukaan | - |
| sudut pandangan | - |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | Mono(White) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COG Built-in WS0010 |
| berat panel | - |
| permohonan | Instruments & Meters |
| antara muka isyarat | CPU/SPI , 16 pins FPC |
| voltan masukan | 5.0V (Typ.) |
| 24QVF2H | SII | 2.4 | 240×320 |
| FX020410DNSWBG01 | Data Image | 2.4 | 480×234 |
| LQ024B7UD01 | SHARP | 2.4 | 160×240 |
| LS024J3LX01 | SHARP | 2.4 | 320×480 |
| LTM024P339 | TOSHIBA | 2.4 | 240×320 |
| RGS24128064YW004 | RiTdisplay | 2.4 | 128×64 |
| TM024HBZ26 | Tianma | 2.4 | 240×320 |
| TP241MC01G | Neoview Kolon | 2.4 | 240×320 |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASYPG01 | WiseChip | 2.4 | 128×64 |
