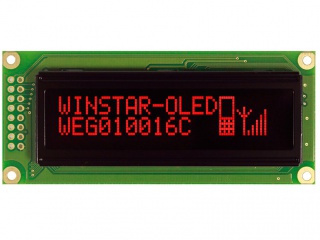

| Nombor Bahagian | WEG010016CW |
| Jenama | Winstar |
| Saiz | 2.4 |
| Permohonan | Instruments & Me |
| Resolusi | 100×16 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | Winstar |
| model panel | WEG010016CW |
| saiz panel | 2.4" |
| jenis panel | PM-OLED, OLED |
| resolusi | 100×16, 42PPI |
| format piksel | Rectangle |
| kawasan paparan | 59.95(W)×11.15(H) mm |
| pembukaan bezel | 66(W)×16(H) mm |
| saiz garis besar | 85(W)×36(H) ×10(D) mm |
| permukaan | - |
| sudut pandangan | - |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | Mono(White) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COG Built-in WS0010 |
| berat panel | - |
| permohonan | Instruments & Meters |
| antara muka isyarat | CPU/SPI , 16 pins Pad |
| voltan masukan | 5.0V (Typ.) |
