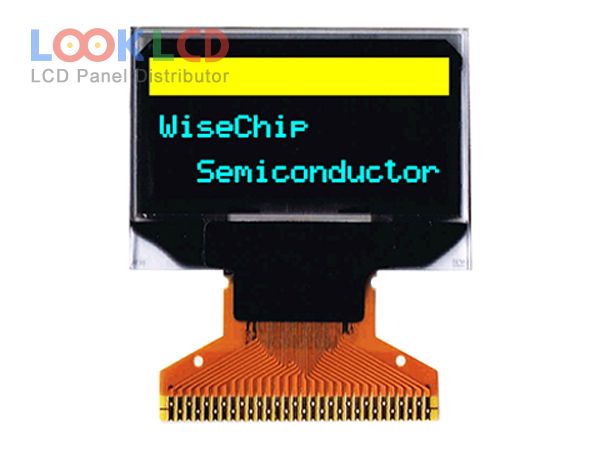

| Nombor Bahagian | UG-2864HMBEG01 |
| Jenama | WiseChip |
| Saiz | 0.96 |
| Permohonan | IA |
| Resolusi | 128×64 |
| Komposisi | OLED |
| Kecerahan | 120 |
| CR | 2000:1 |
| Warna | Area(BY) |
| Lampu latar | self |
| Antara muka | CPU/SPI/I²C |
| jenama panel | Univision |
| model panel | UG-2864HMBEG01 |
| jenis panel | PM-OLED , OLED |
| saiz panel | 0.96 inch |
| resolusi | 128×64 |
| kawasan aktif | 21.744×11.204 mm |
| garis besar | 26.7×19.26×1.55 mm |
| permukaan | |
| kecerahan | 120 cd/m² (Typ.) |
| nisbah kontras | 2000 : 1 (Typ.) |
| warna paparan | Area(BY) |
| sudut pandangan | 80/80/80/80 (Min.)(L/R/U/D) |
| ic pemandu | COG Built-in SSD1306 |
| antara muka isyarat | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| voltan masukan | 2.8/9V (Typ.)(VDD/VCC) |
| rohs: | |
| permohonan | IA |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864ASYPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
| A050BTS30R0 | Aptus | 5.0 | 480×480 |
| AA065VB01 | Mitsubishi | 6.5 | 640×480 |
| AM-800480LTMQW-W0H | AMPIRE | 5.0 | 800×480 |
| KG057QV1CA-G020 | Kyocera | 5.7 | 320×240 |
| LB170E01-SL01 | LG Display | 17.0 | 1280×1024 |
| LM64C219 | SHARP | 8.0 | 640×480 |
| NL192108AC10-01D | NLT | 9.0 | 1920×1080 |
| NL8060BC21-11C | NLT | 8.4 | 800×600 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
