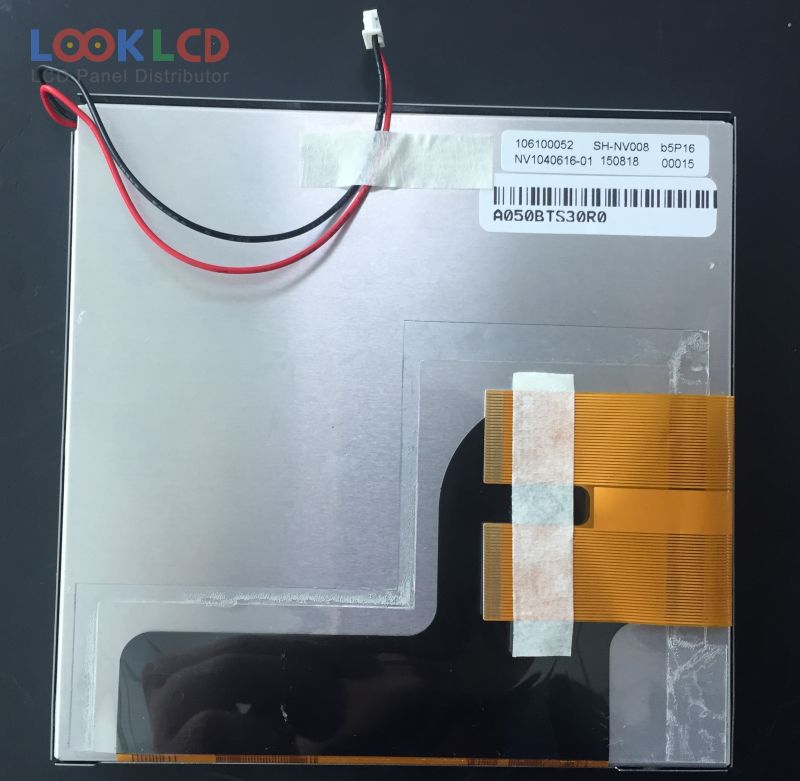

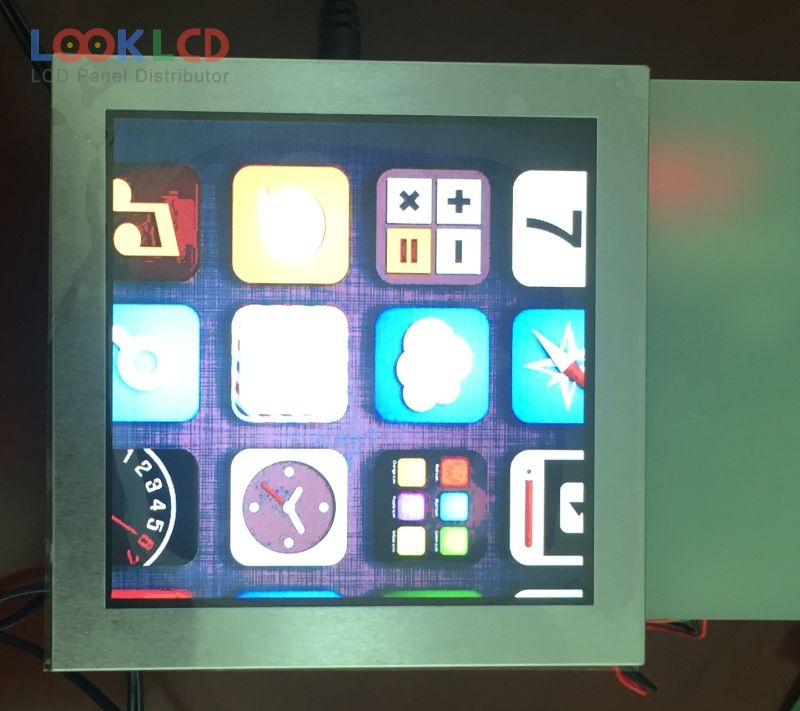

| Nombor Bahagian | A050BTS30R0 |
| Jenama | Aptus |
| Saiz | 5.0 |
| Permohonan | IA |
| Resolusi | 480×480 |
| Komposisi | LCM |
| Kecerahan | 1200 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | Aptus |
| model panel | A050BTS30R0 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.0 inch |
| resolusi | 480(RGB)×480 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 87.3×87.3 mm |
| garis besar | 111.55×110 mm |
| permukaan | |
| kecerahan | 1200 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 50/50/40/40 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | TTL (1 ch, 6-bit), 60 pins |
| voltan masukan | 3.3/9.7/18/-6V (Typ.)(VDD1/VDD2/VGG/VEE) |
| permohonan | IA |
