UG-2864ASWIG01

UG-2864ASWIG01

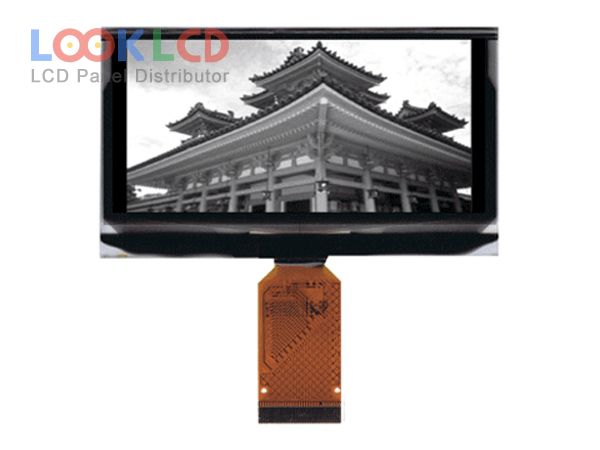

UG-2864ASWIG01 thumb
Jenama
WiseChip
Saiz
2.7
Permohonan
IA
Resolusi
128×64
Komposisi
OLED
Kecerahan
80
CR
10000:1
Warna
Grayscale(W)
Lampu latar
self
Antara muka
CPU/SPI
In Stock
3151
Spesifikasi

Nombor Bahagian UG-2864ASWIG01
JenamaWiseChip
Saiz2.7
PermohonanIA
Resolusi128×64
KomposisiOLED
Kecerahan80
CR10000:1
WarnaGrayscale(W)
Lampu latarself
Antara mukaCPU/SPI
jenama panelUnivision
model panelUG-2864ASWIG01
jenis panel PM-OLED , OLED
saiz panel2.7 inch
resolusi128×64
kawasan aktif61.41×30.69 mm
garis besar73×41.86×2.1 mm
permukaanAntiglare
kecerahan80 cd/m² (Typ.)
nisbah kontras10000 : 1 (Typ.)
warna paparanGrayscale(W) (4-bit)
sudut pandangan
antara muka isyaratCPU/SPI, 30 pins
voltan masukan2.8/15V (Typ.)(VDD/VCC)
permohonanIA
