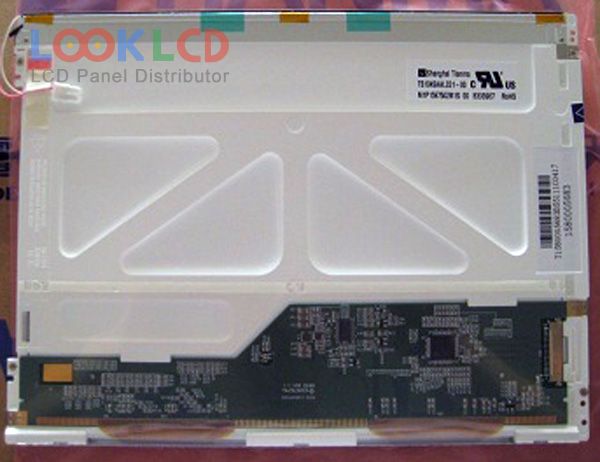

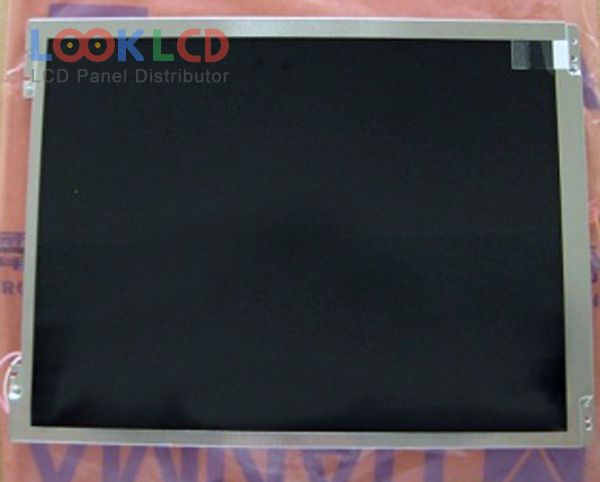

| Nombor Bahagian | TS104SAALC01-00 |
| Jenama | Tianma |
| Saiz | 10.4 |
| Permohonan | IA |
| Resolusi | 800×600 |
| Komposisi | LCM |
| Kecerahan | 230 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | TIANMA |
| model panel | TS104SAALC01-00 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 800(RGB)×600 , SVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 211.2×158.4 mm |
| garis besar | 236×176.9×5.9 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 230 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 10 (Typ.)(TTr+Td) |
| sudut pandangan | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
| G6481L-FF | CITIZEN | 10.4 | 640×480 |
| LB104S04-TL02 | LG Display | 10.4 | 800×600 |
| LM64C35P | SHARP | 10.4 | 640×480 |
| LQ10DH11 | SHARP | 10.4 | 640×480 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| LTD104KA1S | TOSHIBA | 10.4 | 1024×768 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
| TM104SDH02 | Tianma | 10.4 | 800×600 |
| TS104SAALC01-00 | Tianma | 10.4 | 800×600 |
| DLC0570CDG-1 | Other | 5.7 | 320×240 |
| DLC0700YZG-1 | Other | 7.0 | 1024×600 |
| G104XVN01.0 | AUO | 10.4 | 1024×768 |
| G121SN01 V0 | AUO | 12.1 | 800×600 |
| G150XTN02.0 | AUO | 15.0 | 1024×768 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LQ104S1DG34 | SHARP | 10.4 | 800×600 |
| LQ231U1LW21 | SHARP | 23.1 | 1600×1200 |
| LQ9D023 | SHARP | 8.4 | 640×480 |
| NL6448BC20-08E | NLT | 6.5 | 640×480 |
