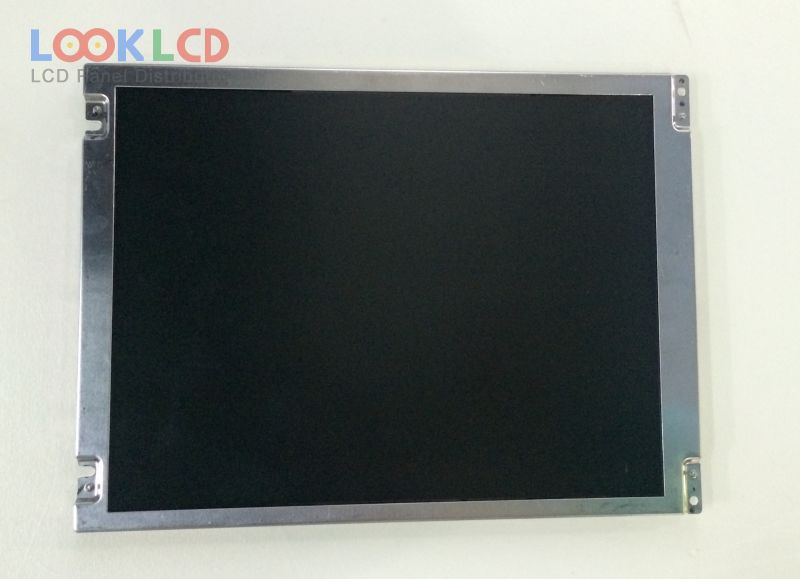

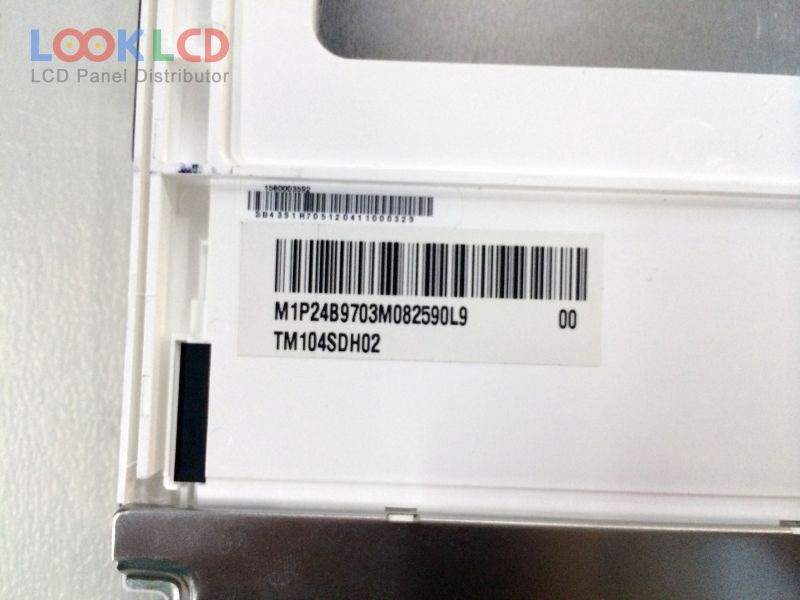

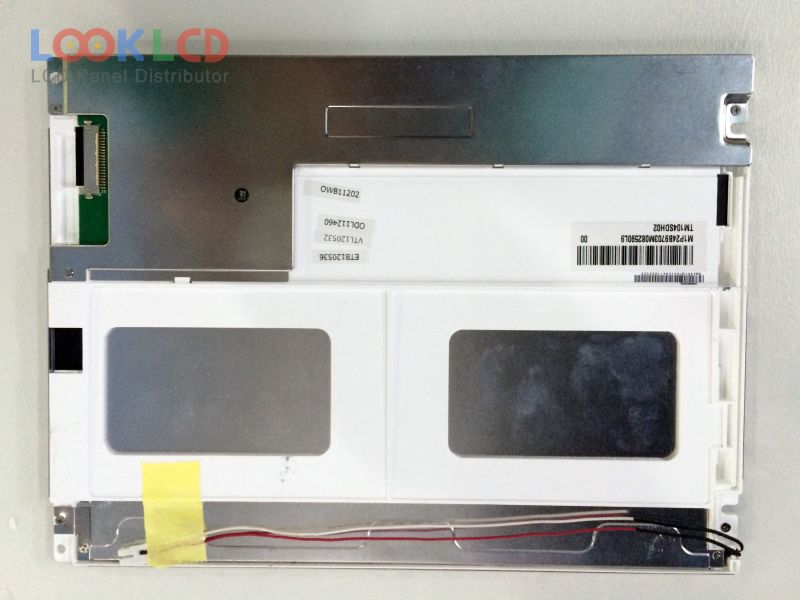

| Nombor Bahagian | TM104SDH02 |
| Jenama | Tianma |
| Saiz | 10.4 |
| Permohonan | IA |
| Resolusi | 800×600 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 500:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | TIANMA |
| model panel | TM104SDH02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 800(RGB)×600 , SVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 211.2×158.4 mm |
| garis besar | 243×179.4×8.5 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 5S8PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
