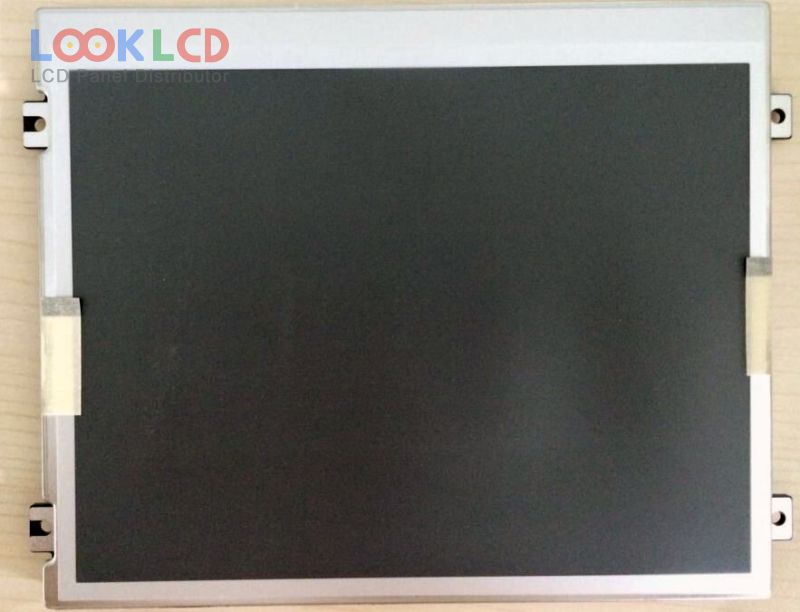

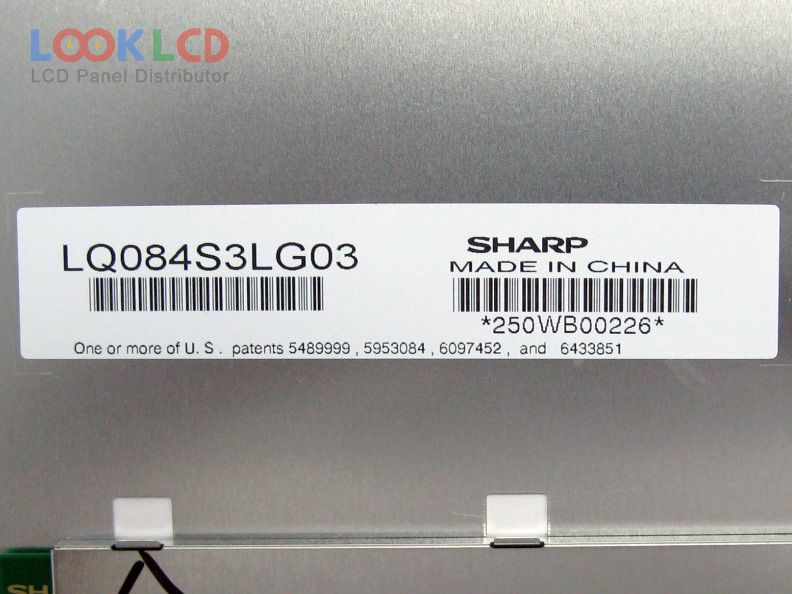

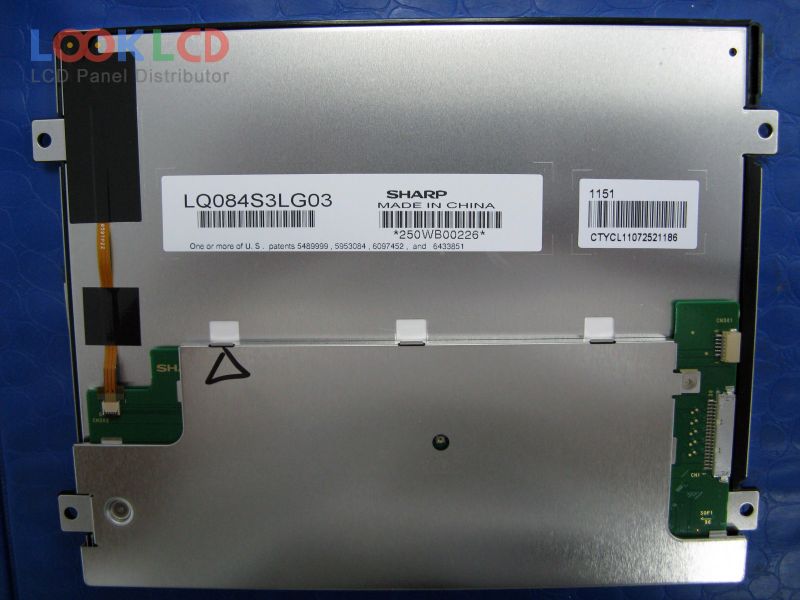

| Nombor Bahagian | LQ084S3LG03 |
| Jenama | SHARP |
| Saiz | 8.4 |
| Permohonan | IA |
| Resolusi | 800×600 |
| Komposisi | LCM |
| Kecerahan | 330 |
| CR | 450:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SHARP |
| model panel | LQ084S3LG03 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.4 inch |
| resolusi | 800(RGB)×600 , SVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 170.4×127.8 mm |
| garis besar | 199.5×154×12.45 mm |
| permukaan | Antiglare, Hard coating (2H) |
| kecerahan | 330 cd/m² (Typ.) |
| nisbah kontras | 450:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 8-bit) |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| sudut pandangan | 65/65/60/55 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
