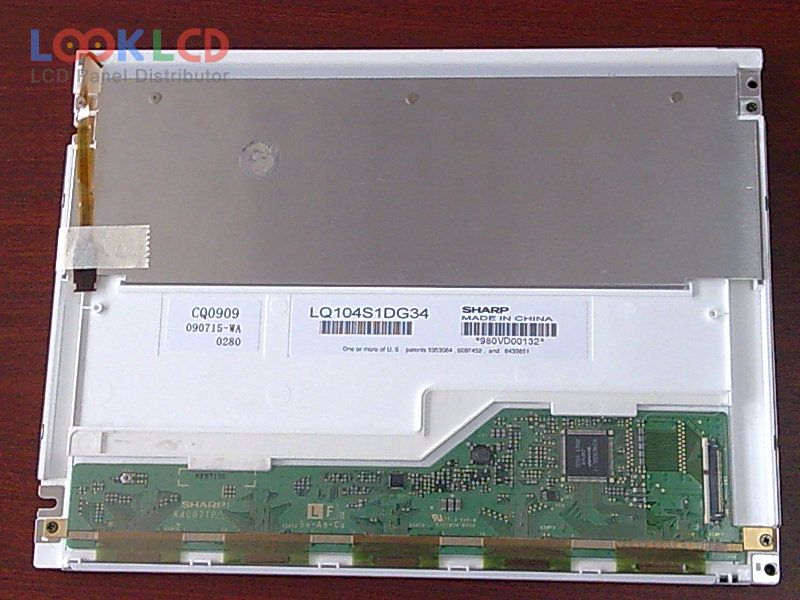

| Nombor Bahagian | LQ104S1DG34 |
| Jenama | SHARP |
| Saiz | 10.4 |
| Permohonan | IA |
| Resolusi | 800×600 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ104S1DG34 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 800(RGB)×600 , SVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 211.2×158.4 mm |
| garis besar | 243×183.8×9.5 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 10/25 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 10S3PWLEDWithout Driver |
| antara muka isyarat | CMOS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
