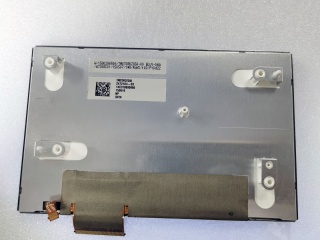

| Nombor Bahagian | TM070RDZG50 |
| Jenama | TIANMA |
| Saiz | 7.0 |
| Permohonan | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama | TIANMA |
| saiz pepenjuru | 7.0 inch |
| format piksel | 800(RGB)×480 [WVGA] 134PPI |
| kawasan aktif | 154.08(H)×85.92(V) mm |
| kawasan bezel | - |
| kecerahan | - |
| arah pandang | - |
| sudut pandangan | 70/70/60/70 (Typ.)(CR≥10) |
| warna sokongan | 16.7M |
| berat badan | - |
| kadar bingkai | 60Hz |
| model | TM070RDZG50 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | - |
| rawatan | Antiglare |
| nisbah kontras | 500:1 (Typ.) (TM) |
| masa tindak balas | 15/25 (Typ.)(Tr/Td) |
| mod operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED |
| direka untuk | Automotive Display |
| panel sentuh | - |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
