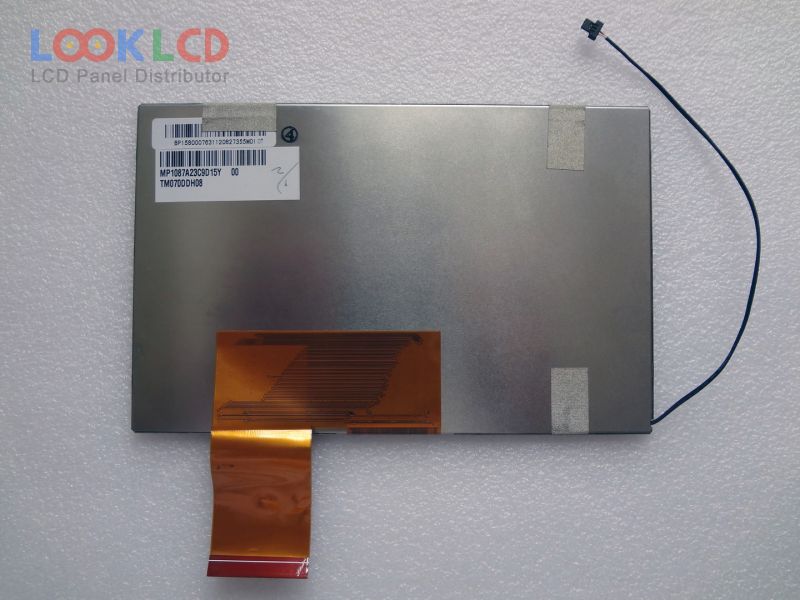

| Nombor Bahagian | TM070DDH08 |
| Jenama | Tianma |
| Saiz | 7.0 |
| Permohonan | MP4 |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 500:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | TIANMA |
| model panel | TM070DDH08 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 153.6×90 mm |
| garis besar | 165.75×105.39×3.7 mm |
| permukaan | Antiglare |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| sudut pandangan | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S6PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| voltan masukan | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| permohonan | MP4 |
