| Nombor Bahagian | TM055XDHP10 |
| Jenama | Tianma |
| Saiz | 5.5 |
| Permohonan | MPH |
| Resolusi | 540×960 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | TIANMA |
| model panel | TM055XDHP10 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.5 inch |
| resolusi | 540(RGB)×960 , qHD |
| mod paparan | FFS, Normally Black, Transmissive |
| kawasan aktif | 68.04×120.96 mm |
| garis besar | 72.14×130.86×1.95 mm |
| permukaan | Antiglare (Haze 42%) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193170% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 80Hz |
| jenis lampu | 5S2PWLEDWithout Driver |

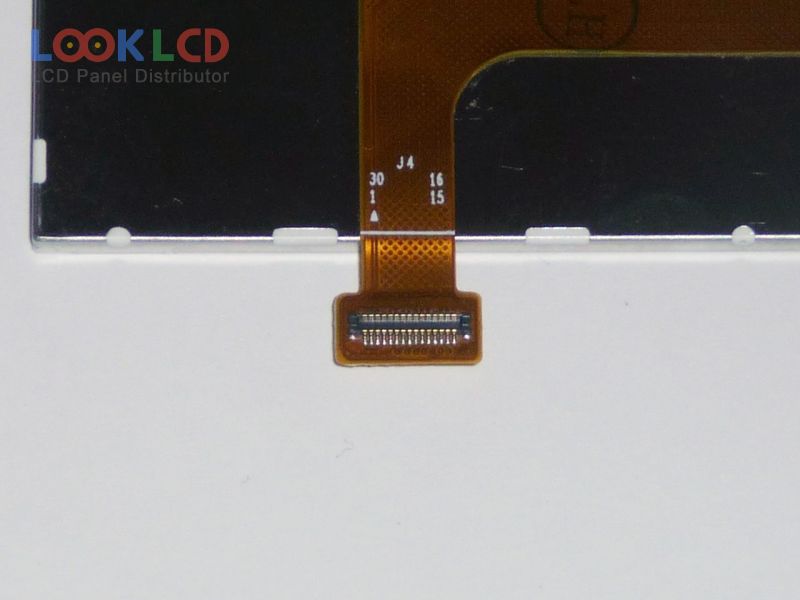

| antara muka isyarat | MIPI (2 data lanes), 30 pins |
| voltan masukan | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| permohonan | MPH |
| BV055FHM-N00 | BOE | 5.5 | 1080×1920 |
| CLAN055WA41 3XB | CPT | 5.5 | 720×1280 |
| H546DLB01.1 | AUO | 5.5 | 1080×1920 |
| LH550WF1-SD01 | LG Display | 5.5 | 1080×1920 |
| LQ055W1GC01 | SHARP | 5.5 | 1024×600 |
| LTA055B0R0A | TOSHIBA | 5.5 | 480×234 |
| TM055JDHP71 | Tianma | 5.5 | 720×1280 |
| TM055JVZG02 | Tianma | 5.5 | 720×1280 |
| TM055XDHP10 | Tianma | 5.5 | 540×960 |
| UG-5664ASGGF01 | WiseChip | 5.5 | 256×64 |
| AMS429QC08 | Samsung | 4.3 | 540×960 |
| E555HBM2 | EDO | 5.5 | 720×1280 |
| H429AL02.0 | AUO | 4.3 | 540×960 |
| H430VL02 V1 | AUO | 4.3 | 480×800 |
| H495TAN01.1 | AUO | 5.0 | 720×1280 |
| OEL9M0053-Y-E | Other | 1.6 | 128×64 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
| TX09D83VM3CEA | KOE | 3.5 | 240×320 |
