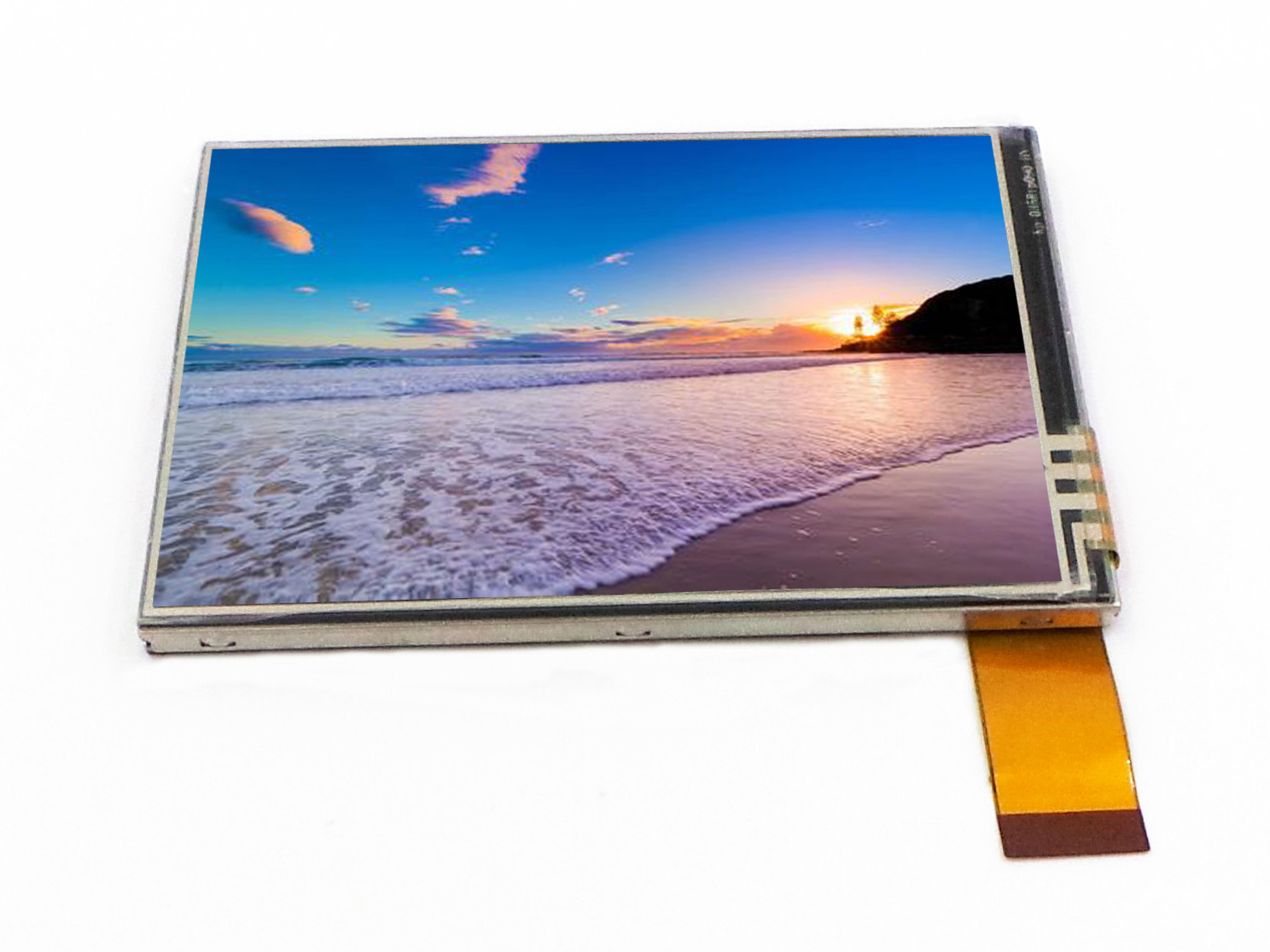

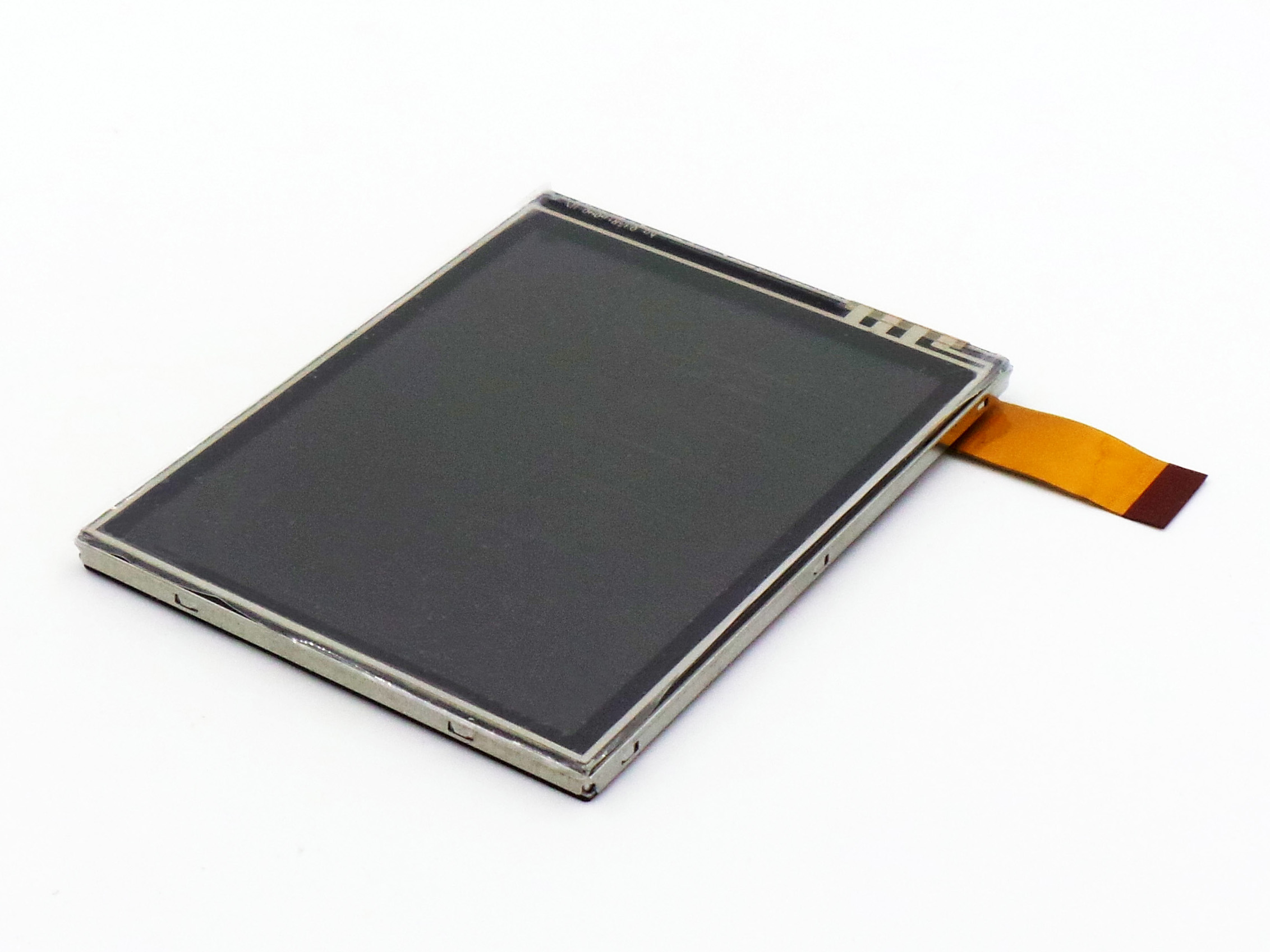

| Nombor Bahagian | S035V04-T |
| Jenama | CDTECH |
| Saiz | 3.5 |
| Permohonan | Industrial Handheld |
| Resolusi | 480×640 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 8S1P |
| Antara muka | Parallel |
| jenama panel | CDTECH |
| model panel | S035V04-T |
| saiz panel | 3.5" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 480(RGB)×640, VGA, 228PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 53.28(W)×71.04(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 64(W)×85(H) ×5(D) mm |
| permukaan | - |
| kecerahan | 650 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) (TM) |
| sudut pandangan | 65/65/55/65 (Typ.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | 9 o'clock |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| warna paparan | 262K 50% NTSC |
| jenis lampu | 8S1P WLED , 25K hours , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | 4-wire Resistive Touch |
| berat panel | TBD |
| permohonan | Industrial Handheld & PDA |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit) , 39 pins FPC |
| voltan masukan | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
