| Nombor Bahagian | PT236AT02-1 |
| Jenama | HKC |
| Saiz | 23.6 |
| Permohonan | TV Sets |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD , CELL |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antara muka | LVDS |
| jenama panel | HKC |
| saiz panel | 23.6" |
| resolusi | 1366(RGB)×768, WXGA, 66PPI |
| kawasan paparan | 521.471(W)×293.184(H) mm |
| saiz garis besar | 535.471(W)×306.404(H) ×1.37(D) mm |
| kecerahan | 0 cd/m² |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| kedalaman kaca | 0.50+0.50 mm |
| warna paparan | 16.7M 71% NTSC |
| kekerapan | 60Hz |
| ic pemandu | COF Built-in 2 source + 2 gate chips |
| berat panel | 500g (Typ.) |
| antara muka isyarat | LVDS (1 ch, 8-bit) , 30 pins Connector |
| voltan masukan | 12.0V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

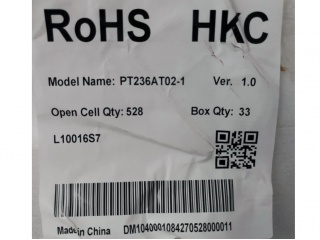

| model panel | PT236AT02-1 |
| jenis panel | a-Si TFT-LCD , CELL |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare (Haze 3%), Hard coating (3H) |
| nisbah kontras | 3000:1 (Typ.) (TM) |
| mod paparan | FSA, Normally Black, Transmissive |
| masa tindak balas | 9.5 (Typ.)(G to G) |
| ketransmisian | 5.8% (Typ.)(with Polarizer) |
| jenis lampu | No B/L |
| skrin sentuh | Without |
| permohonan | TV Sets |
