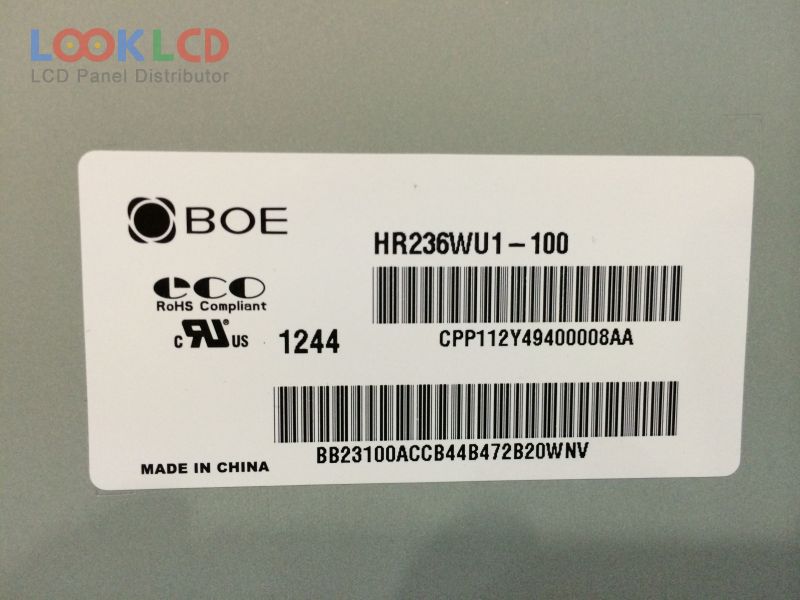

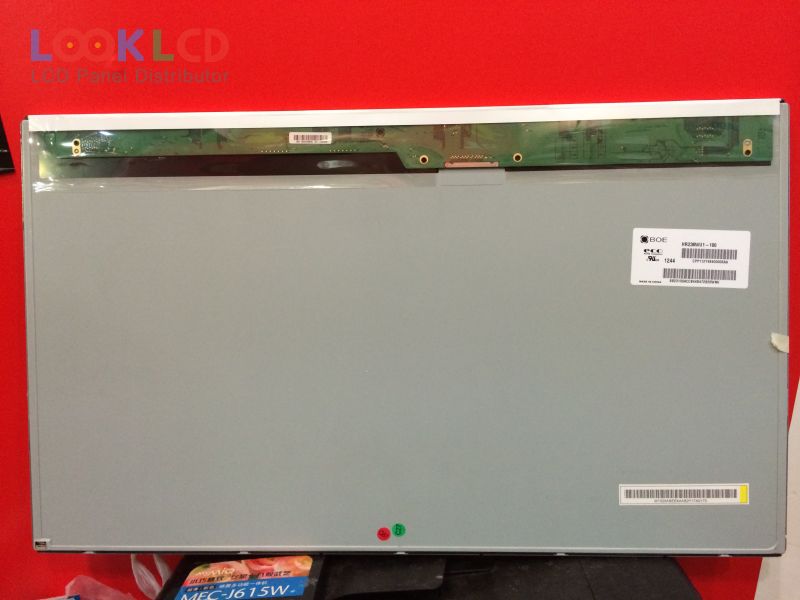

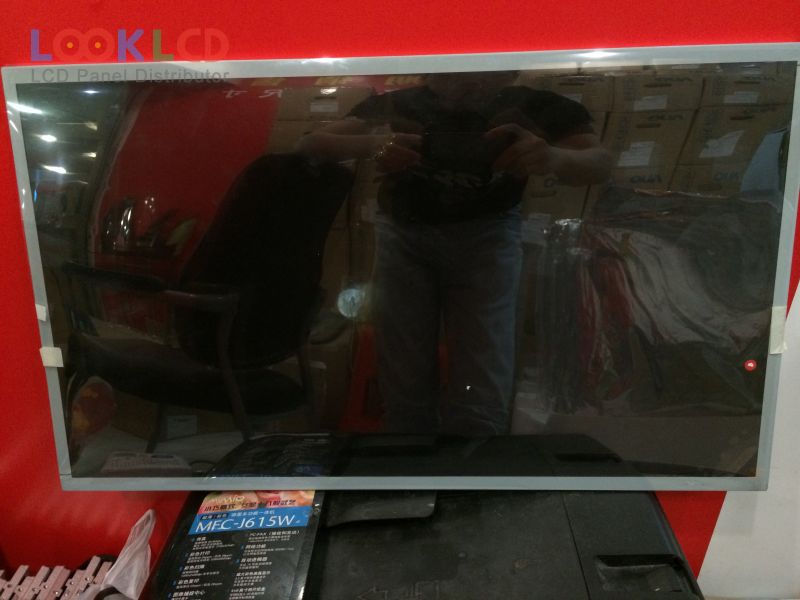

| Nombor Bahagian | HR236WU1-100 |
| Jenama | BOE |
| Saiz | 23.6 |
| Permohonan | DMPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | BOE |
| model panel | HR236WU1-100 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 23.6 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 521.28×293.22 mm |
| garis besar | 544.8×320.5×9.6 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC) |
| masa tindak balas | 14 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 4 stringsWLEDWithout Driver |
| antara muka isyarat | LVDS (2 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
