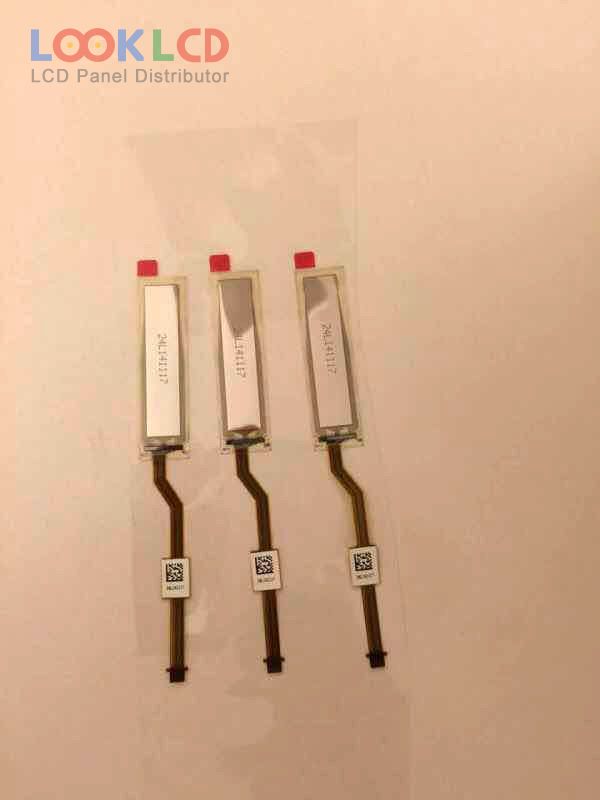

| Nombor Bahagian | EPW1802AA |
| Jenama | Futaba |
| Saiz | 1.8 |
| Permohonan | SB |
| Resolusi | 160×32 |
| Komposisi | OLED |
| Kecerahan | 600 |
| CR | 10000:1 |
| Warna | Grayscale(W) |
| Lampu latar | self |
| Antara muka | SPI |
| jenama panel | Futaba |
| model panel | EPW1802AA 1 Compatible model |
| jenis panel | PM-OLED , OLED |
| saiz panel | 1.8 inch |
| resolusi | 160×32 |
| kawasan aktif | 45.096×9 mm |
| garis besar | 55.3×14.94×0.246 mm |
| permukaan | Without Polarizer |
| kecerahan | 600 cd/m² (Typ.) |
| nisbah kontras | 10000 : 1 (Min.) |
| warna paparan | Grayscale(W) (4-bit) |
| sudut pandangan | |
| kekerapan | 100Hz |
| ic pemandu | Built-in SSD1362 |
| antara muka isyarat | SPI, 13 pins |
| voltan masukan | 1.8/12.0V (Typ.)(VCI/VCC) |
| permohonan | SB |
| EPW1802AA | Futaba | 1.8 | 160×32 |
| ES063TC1 | E Ink | 6.3 | 200×1040 |
| NVK16BSC001G-C-0000 | Neoview Kolon | 1.7 | 80×168 |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0068-R-E | Other | 0.91 | 128×32 |
| OEL9M0068-W-E | Other | 0.91 | 128×32 |
| OEL9M0068-Y-E | Other | 0.91 | 128×32 |
| RGC05072032WR000 | RiTdisplay | 0.48 | 72×32 |
| UG-2832HSWEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832KLBEG04 | WiseChip | 0.91 | 128×32 |
