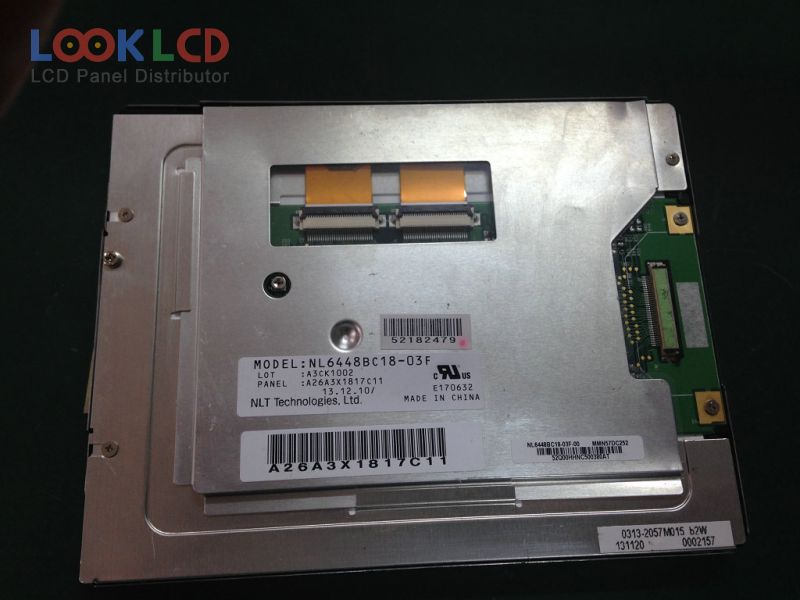

| Nombor Bahagian | NL6448BC18-03F |
| Jenama | NLT |
| Saiz | 5.7 |
| Permohonan | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 800 |
| CR | 850:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | NEC |
| model panel | NL6448BC18-03F 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.7 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 116.16×87.12 mm |
| garis besar | 135×104.6×10.9 mm |
| permukaan | Clear, Hard coating (3H) |
| kecerahan | 800 cd/m² (Typ.) |
| nisbah kontras | 850:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193160% |
| masa tindak balas | 3/15 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 9S2P×2CNWLEDWithout Driver |
| antara muka isyarat | CMOS (1 ch, 6-bit), 33 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
