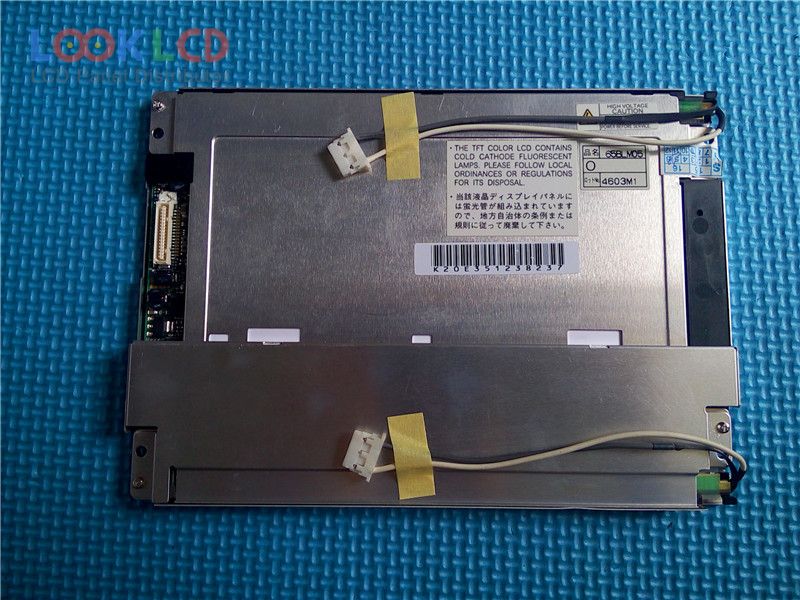

| Nombor Bahagian | NL6448BC20-08 |
| Jenama | NLT |
| Saiz | 6.5 |
| Permohonan | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 250:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | NEC |
| model panel | NL6448BC20-08 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 6.5 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 132.48×99.36 mm |
| garis besar | 178.8×126.8 mm |
| permukaan | Antiglare (Haze 12%), Hard coating (2H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 250:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193142% |
| masa tindak balas | 13/36 (Typ.)(Tr/Td) |
| sudut pandangan | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | CMOS (1 ch, 6-bit), 31 pins |
| voltan masukan | 3.3/5.0V (Typ.)(VCC) |
| permohonan | IA |
