N101ICG-L21 Rev.C1

N101ICG-L21 Rev.C1

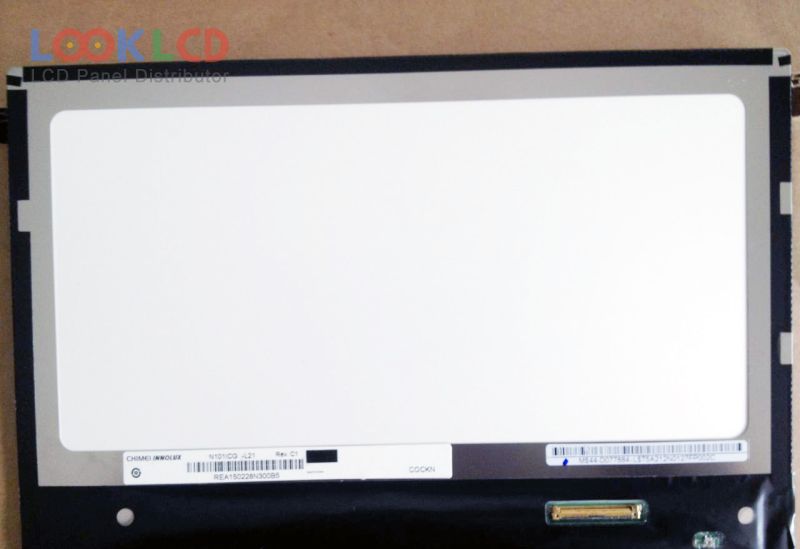

N101ICG-L21 Rev.C1 thumb
Jenama
Innolux
Saiz
10.1
Permohonan
PAD
Resolusi
1280×800
Komposisi
LCM
Kecerahan
350
CR
800:1
Warna
262K
Lampu latar
WLED
Antara muka
LVDS
In Stock
3180
Spesifikasi

Nombor Bahagian N101ICG-L21 Rev.C1
JenamaInnolux
Saiz10.1
PermohonanPAD
Resolusi1280×800
KomposisiLCM
Kecerahan350
CR800:1
Warna262K
Lampu latarWLED
Antara mukaLVDS
jenama panelCMO
model panelN101ICG-L21 Rev.C1 2 Compatible model
jenis panel a-Si TFT-LCD , LCM
saiz panel10.1 inch
resolusi1280(RGB)×800 , WXGA
mod paparanAAS, Normally Black, Transmissive
kawasan aktif216.96×135.6 mm
garis besar227.42×147.69×4.85 mm
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan350 cd/m² (Typ.)
nisbah kontras800:1 (Typ.)
warna paparan262K (6-bit), CIE193150%
masa tindak balas14/11 (Typ.)(Tr/Td)
sudut pandangan85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu3 stringsWLEDEmbedded (LED Driver)
antara muka isyaratLVDS (1 ch, 6-bit), 40 pins
voltan masukan3.3V (Typ.)
permohonanPAD
