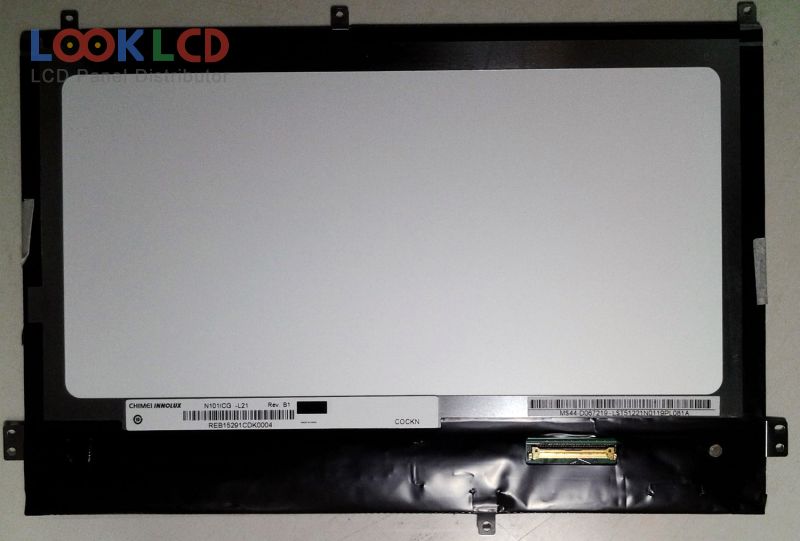

| Nombor Bahagian | N101ICG-L21 Rev.B1 |
| Jenama | Innolux |
| Saiz | 10.1 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CHIMEI INNOLUX |
| model panel | N101ICG-L21 Rev.B1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | AAS, Normally Black, Transmissive |
| kawasan aktif | 216.96×135.6 mm |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 14/11 (Typ.)(Tr/Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3 stringsWLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
