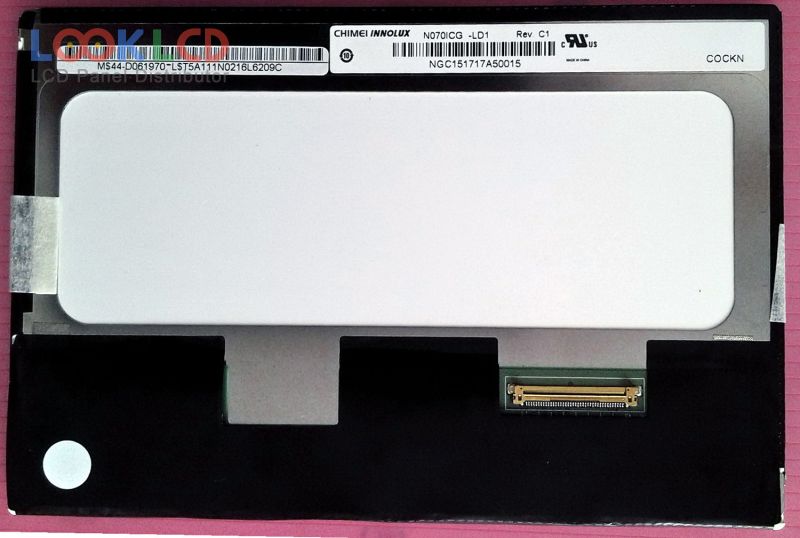

| Nombor Bahagian | N070ICG-LD1 |
| Jenama | Innolux |
| Saiz | 7.0 |
| Permohonan | UMPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |

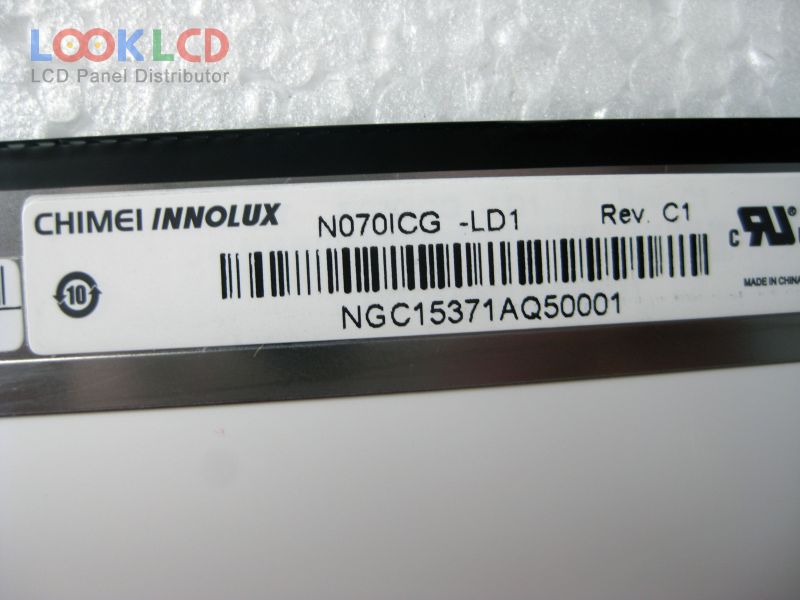

| jenama panel | CHIMEI INNOLUX |
| model panel | N070ICG-LD1 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | IPS, Normally Black, Transmissive |
| kawasan aktif | 149.76×93.6 mm |
| garis besar | 161×107×4.5 mm |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193150% |
| masa tindak balas | 14/11 (Typ.)(Tr/Td) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 9S2PWLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 8-bit), 39 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | UMPC |
