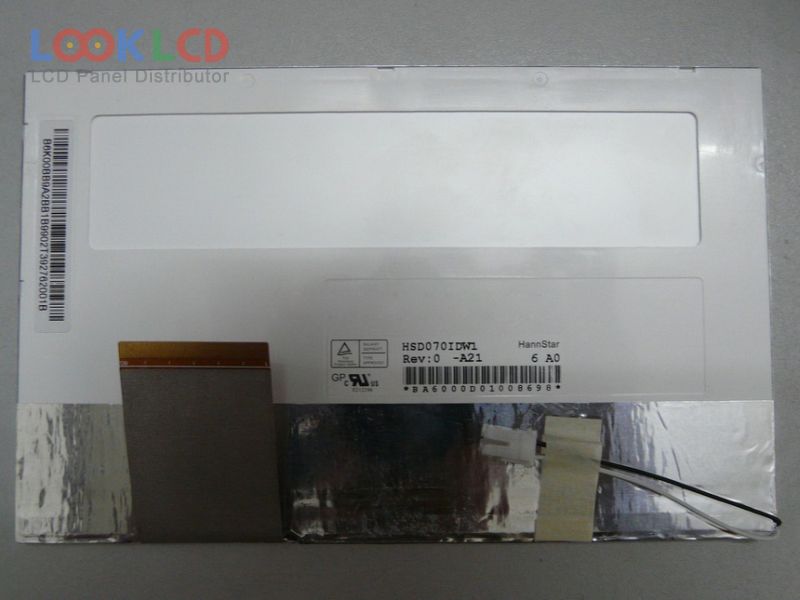

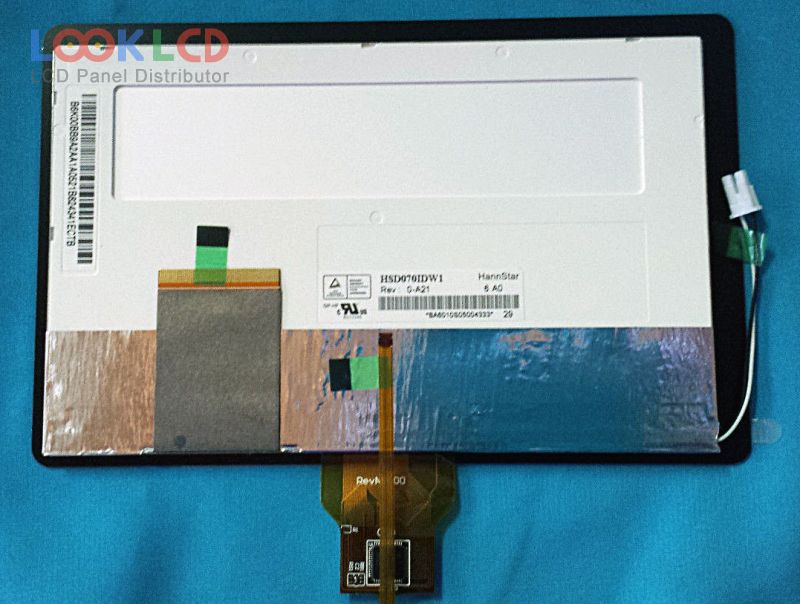

| Nombor Bahagian | HSD070IDW1-A21 |
| Jenama | HannStar |
| Saiz | 7.0 |
| Permohonan | DPF |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 500:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | HannStar |
| model panel | HSD070IDW1-A21 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 153.6×86.64 mm |
| garis besar | 165×104×5.4 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K/16.2M (6-bit / 6-bit + FRC) |
| masa tindak balas | 5/20 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 3S7PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| voltan masukan | 3.0/10.0/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| permohonan | DPF |
