Innolux N070ICE-G02 Rev.C3 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

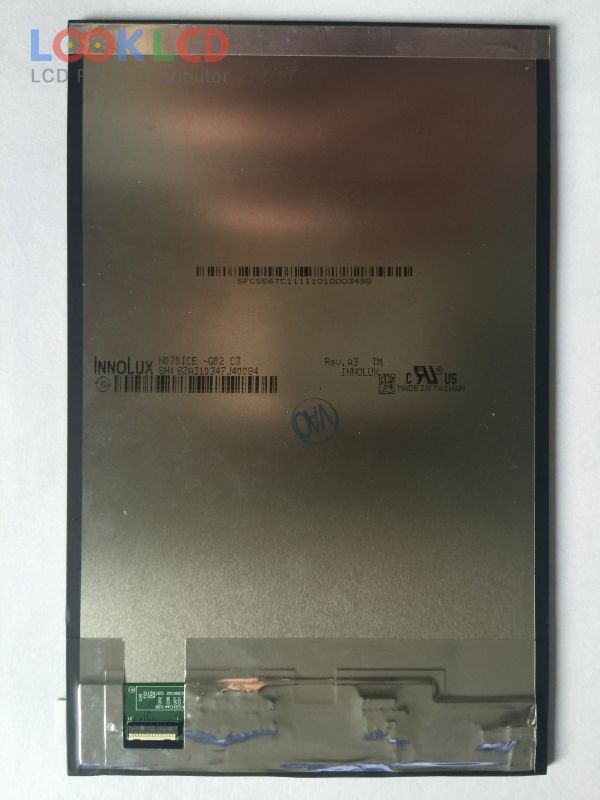

N070ICE-G02 Rev.C3

N070ICE-G02 Rev.C3
N070ICE-G02 Rev.C3 thumb
Jenama
Innolux
Saiz
7.0
Permohonan
PAD
Resolusi
800×1280
Komposisi
LCM
Kecerahan
300
CR
800:1
Warna
16.7M
Lampu latar
WLED
Antara muka
MIPI
In Stock
700
Spesifikasi

Nombor Bahagian N070ICE-G02 Rev.C3
JenamaInnolux
Saiz7.0
PermohonanPAD
Resolusi800×1280
KomposisiLCM
Kecerahan300
CR800:1
Warna16.7M
Lampu latarWLED
Antara mukaMIPI
jenama panelINNOLUX
model panelN070ICE-G02 Rev.C3
jenis panel a-Si TFT-LCD , LCM
saiz panel7.0 inch
resolusi800(RGB)×1280 , WXGA
mod paparanAAS, Normally Black, Transmissive
kawasan aktif94.2×150.72 mm
garis besar103.5×162.22×4.51 mm
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan300 cd/m² (Typ.)
nisbah kontras800:1 (Typ.)
warna paparan16.7M (8-bit), CIE193160%
masa tindak balas11/9 (Typ.)(Tr/Td)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu3S6PWLEDWithout Driver
antara muka isyaratMIPI (4 data lanes), 31 pins
voltan masukan1.8/3.3V (Typ.)(VDDI/VCI)
permohonanPAD
