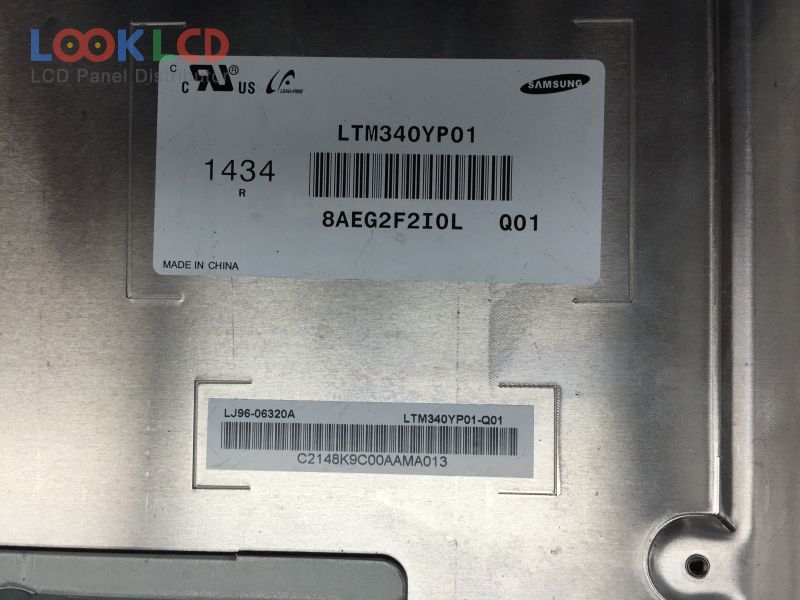

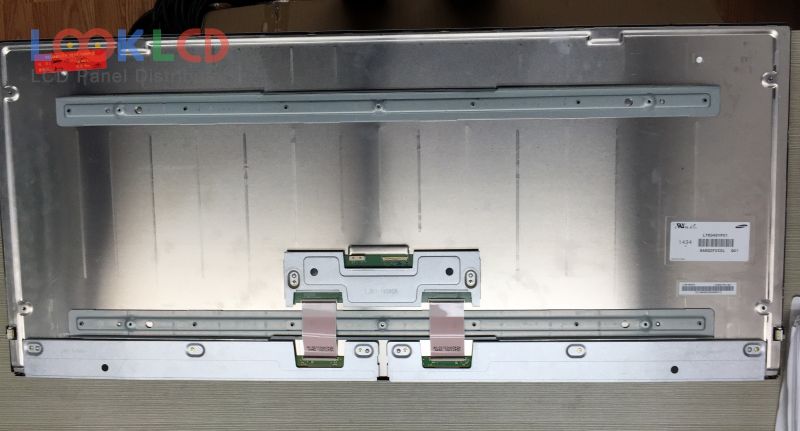

| Nombor Bahagian | LTM340YP01 |
| Jenama | Samsung |
| Saiz | 34 |
| Permohonan | DMPC |
| Resolusi | 3440×1440 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | SAMSUNG |
| model panel | LTM340YP01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 34 inch |
| resolusi | 3440(RGB)×1440 |
| mod paparan | PVA, Normally Black, Transmissive |
| kawasan aktif | 799.8×334.8 mm |
| garis besar | 821.3×360.6×19.3 mm |
| permukaan | Antiglare (Haze 2.3%), Hard coating (2H) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 3000:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193175% |
| masa tindak balas | 14 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 6 stringsWLEDWithout Driver |
| antara muka isyarat | eDP (4 Lanes), 40 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | DMPC |
