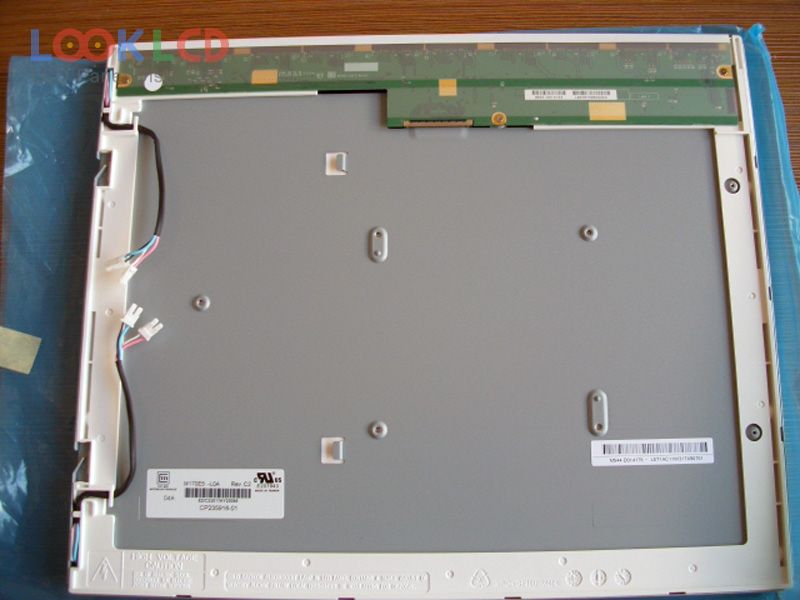

| Nombor Bahagian | M170E5-L0A |
| Jenama | Innolux |
| Saiz | 17.0 |
| Permohonan | DMPC |
| Resolusi | 1280×1024 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 500:1 |
| Warna | 16.2M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | CMO |
| model panel | M170E5-L0A |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.0 inch |
| resolusi | 1280(RGB)×1024 , SXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 337.92×270.336 mm |
| garis besar | 358.5×296.5×17.5 mm |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 16.2M (6-bit + FRC) |
| masa tindak balas | 2/6 (Typ.)(Tr/Td) |
| sudut pandangan | 75/75/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 4 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (2 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
