LM190E03-TLB4

LM190E03-TLB4
LM190E03-TLB4 thumb
Jenama
LG Display
Saiz
19.0
Permohonan
DMPC
Resolusi
1280×1024
Komposisi
LCM
Kecerahan
300
CR
700:1
Warna
16.7M
Lampu latar
CCFL
Antara muka
LVDS
In Stock
11844
Spesifikasi

Nombor Bahagian LM190E03-TLB4
JenamaLG Display
Saiz19.0
PermohonanDMPC
Resolusi1280×1024
KomposisiLCM
Kecerahan300
CR700:1
Warna16.7M
Lampu latarCCFL
Antara mukaLVDS
jenama panelLG.Philips LCD

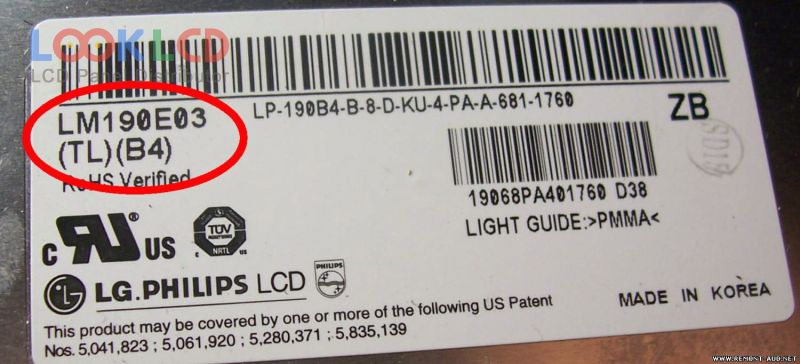

model panelLM190E03-TLB4
jenis panel a-Si TFT-LCD , LCM
saiz panel19.0 inch
resolusi1280(RGB)×1024 , SXGA
mod paparanTN, Normally White, Transmissive
kawasan aktif376.32×301.056 mm
garis besar396×324×17 mm
permukaanAntiglare, Hard coating (3H)
kecerahan300 cd/m² (Typ.)
nisbah kontras700:1 (Typ.)
warna paparan16.7M (6-bit + Hi-FRC), CIE193172%
masa tindak balas2/6 (Typ.)(Tr/Td)
sudut pandangan70/70/70/70 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu4 pcsCCFLWithout Driver
antara muka isyaratLVDS (2 ch, 8-bit), 30 pins
voltan masukan5.0V (Typ.)
permohonanDMPC
Model Keluarga
LM190E02-A4 LG Display 19.0 1280×1024
LM190E03-TLB4 LG Display 19.0 1280×1024
LM190E08-TLG2 LG Display 19.0 1280×1024
LM190E08-TLG3 LG Display 19.0 1280×1024
LM190E08-TLG4 LG Display 19.0 1280×1024
LM190E08-TLGD LG Display 19.0 1280×1024
LM190E08-TLL3 LG Display 19.0 1280×1024
LM190E09-TLB1 LG Display 19.0 1280×1024
LM190E09-TLD1 LG Display 19.0 1280×1024
LM190E0A-SLA1 LG Display 19.0 1280×1024
