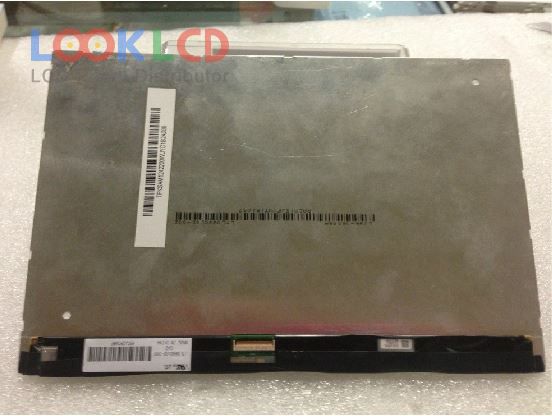

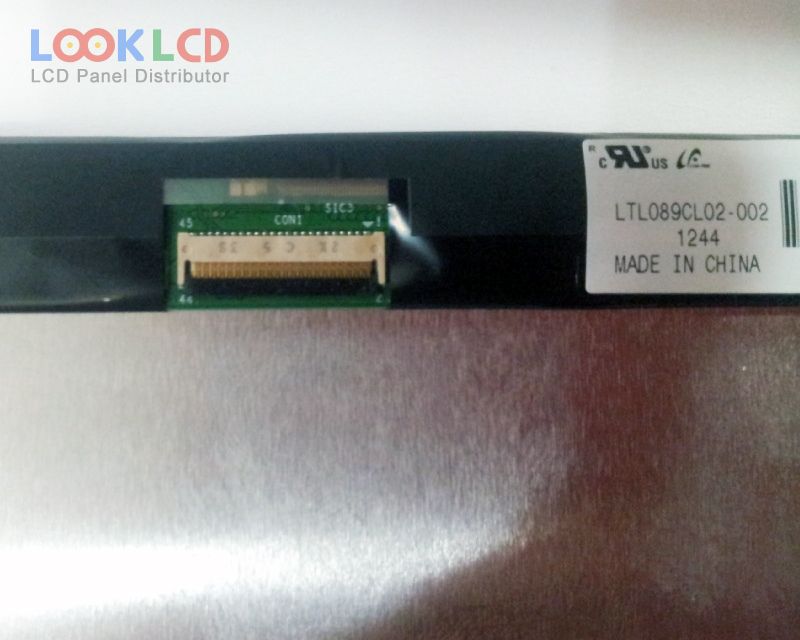

| Nombor Bahagian | LTL089CL02-002 |
| Jenama | Samsung |
| Saiz | 8.9 |
| Permohonan | PAD |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 900:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | SAMSUNG |
| model panel | LTL089CL02-002 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.9 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mod paparan | PLS, Normally Black, Transmissive |
| kawasan aktif | 191.52×119.7 mm |
| garis besar | 203.5×135.9×5.2 mm |
| permukaan | Glare (Haze 0%), Hard coating (2H) |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 7S5PWLEDWithout Driver |
| antara muka isyarat | MIPI (4 data lanes), 45 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
