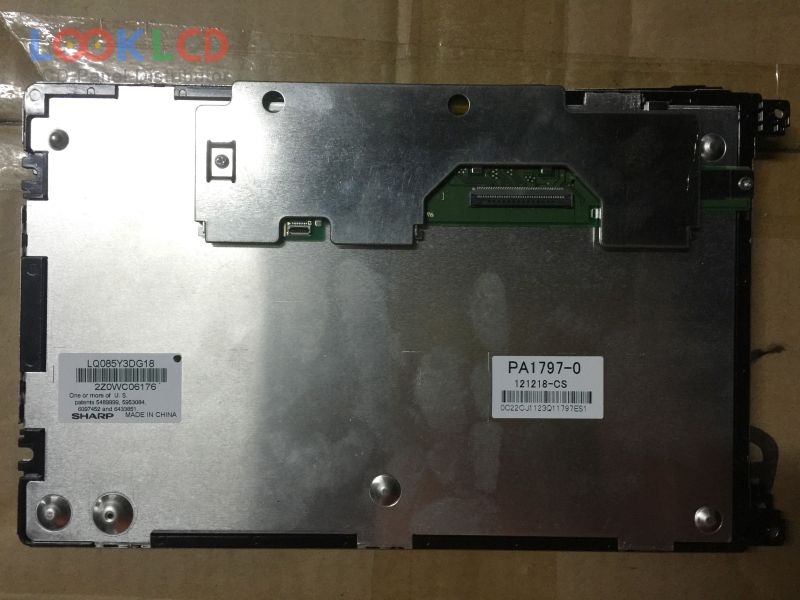

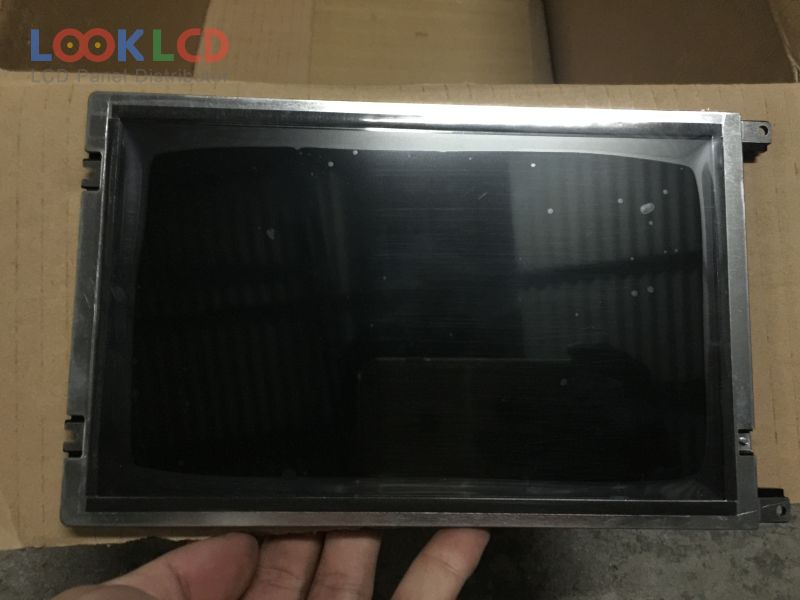

| Nombor Bahagian | LQ085Y3DG18 |
| Jenama | SHARP |
| Saiz | 8.5 |
| Permohonan | IA |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 450:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ085Y3DG18 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.5 inch |
| resolusi | 800×480(RGB) , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 184.8×110.88 mm |
| garis besar | 222.7×133.6×10.5 mm |
| permukaan | Antiglare |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 450:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 8/21 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | CMOS (1 ch, 6-bit), 50 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
