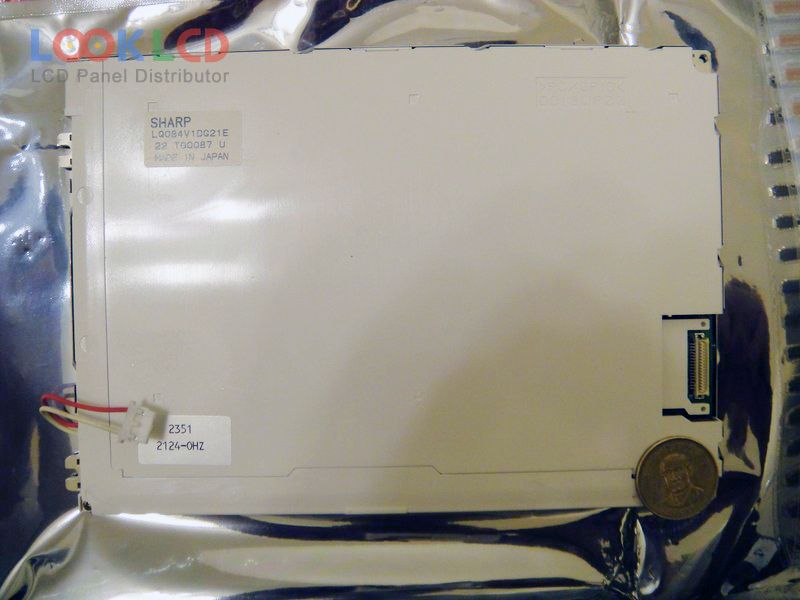

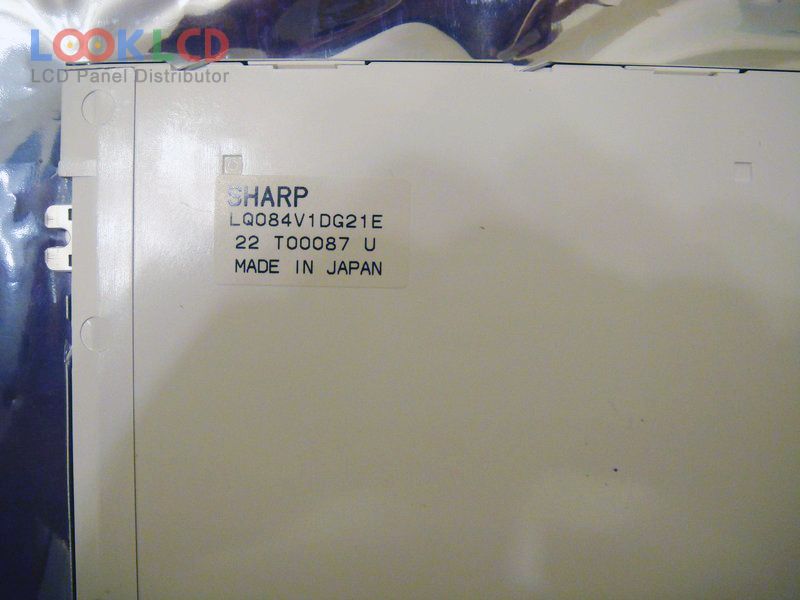

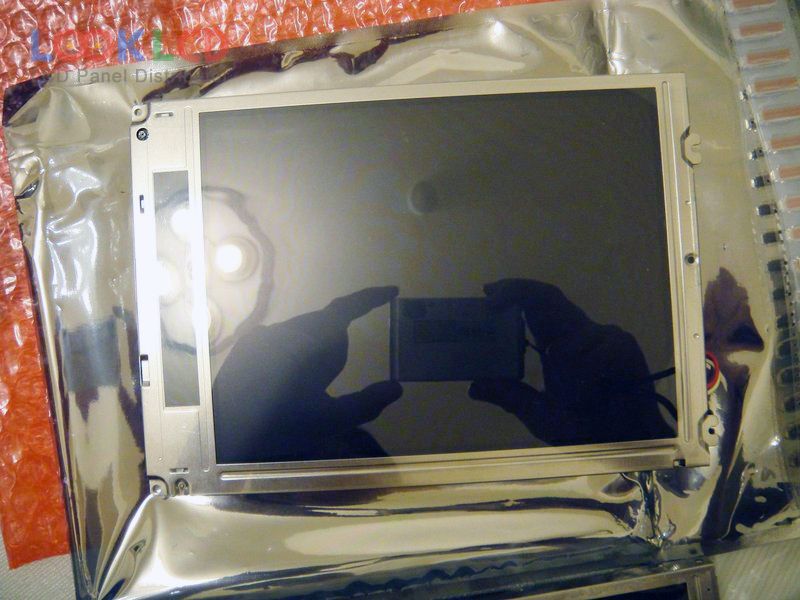

| Nombor Bahagian | LQ084V1DG21E |
| Jenama | SHARP |
| Saiz | 8.4 |
| Permohonan | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 250:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ084V1DG21E |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.4 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 170.88×129.6 mm |
| garis besar | 216×152.4 mm |
| permukaan | |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 250:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 20/40 (Typ.)(Tr/Td) |
| sudut pandangan | 55/55/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 1 pcsCCFL |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 31 pins |
| rohs: | |
| permohonan | IA |
