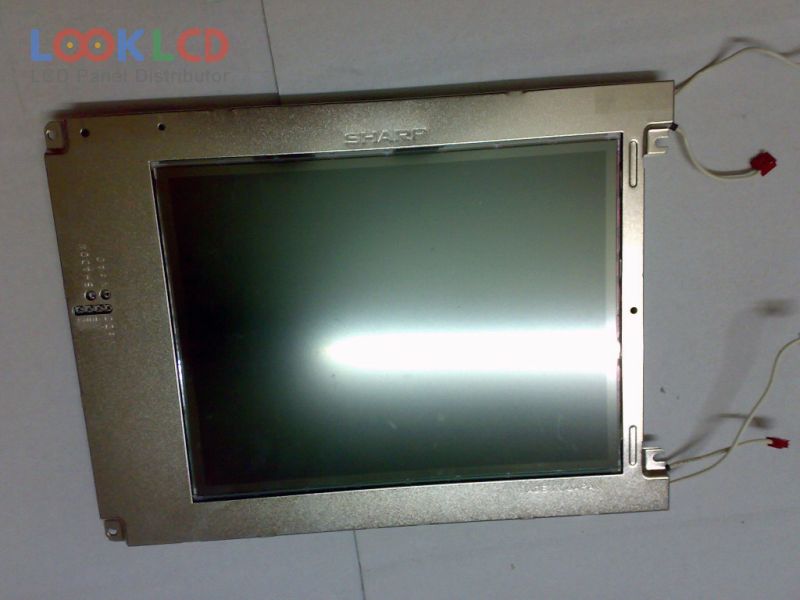

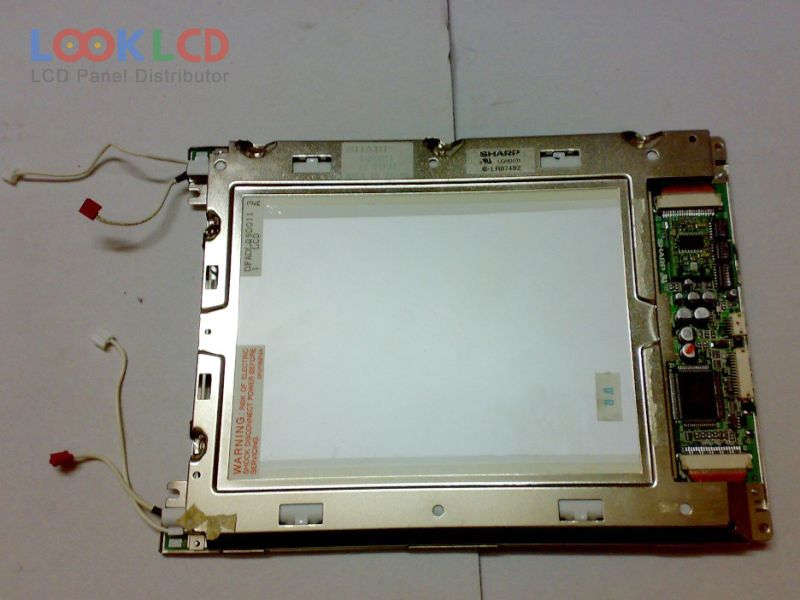

| Nombor Bahagian | LQ9D011 |
| Jenama | SHARP |
| Saiz | 8.4 |
| Permohonan | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 70 |
| CR | 60:1 |
| Warna | 512 |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ9D011 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.4 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 170.88×129.6 mm |
| garis besar | 243.5×180 mm |
| permukaan | Antiglare, Hard coating (2H) |
| kecerahan | 70 cd/m² (Typ.) |
| nisbah kontras | 60:1 (Typ.) |
| warna paparan | 512 (3-bit) |
| masa tindak balas | 30/50 (Typ.)(Tr/Td) |
| sudut pandangan | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 3-bit), 21 pins |
| voltan masukan | 5.0V (Typ.)(VCC) |
| permohonan | IA |
