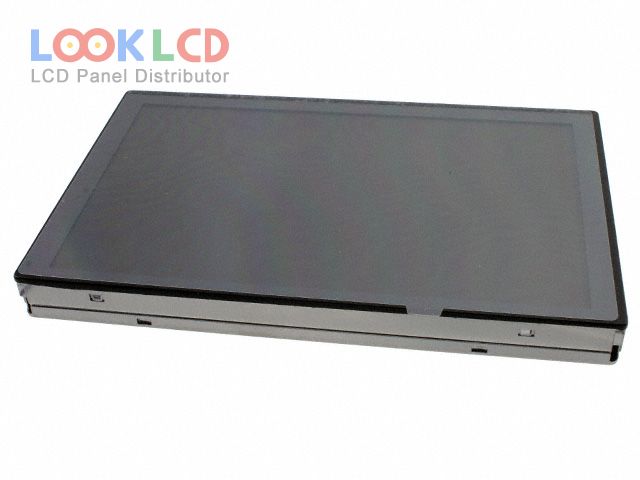

| Nombor Bahagian | LQ065Y5DZ01 |
| Jenama | SHARP |
| Saiz | 6.5 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 675 |
| CR | 1700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ065Y5DZ01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 6.5 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | ASV, Normally Black, Transmissive |
| kawasan aktif | 141.6×84.96 mm |
| garis besar | 161.8×100.6×17.5 mm |
| permukaan | |
| kecerahan | 675 cd/m² (Typ.) |
| nisbah kontras | 1700:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 15/5 (Typ.)(Tr/Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | Parallel RGB (1 ch, 4-bit), 68 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | CNS |
| LQ065T5AR05 | SHARP | 6.5 | 400×234 |
| LQ065T5BR08 | SHARP | 6.5 | 400×240 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ065T5DG30 | SHARP | 6.5 | 400×240 |
| LQ065T9BR51U | SHARP | 6.5 | 400×240 |
| LQ065T9BR54U | SHARP | 6.5 | 400×240 |
| LQ065T9DR51U | SHARP | 6.5 | 400×240 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LQ065Y5DZ01 | SHARP | 6.5 | 800×480 |
| C070VVN03.0 | AUO | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| LA058WQ1-SD01 | LG Display | 5.8 | 400×240 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ088H9DZ03 | SHARP | 8.8 | 640×240 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| M050SWN1 R2 | IVO | 5.0 | 480×234 |
| PM100WX2 | E Ink | 10.0 | 800×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
