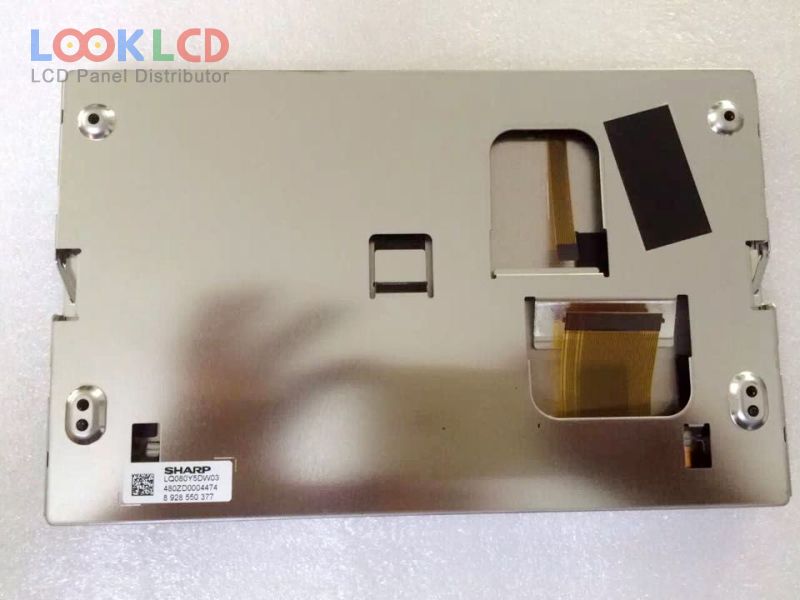

| Nombor Bahagian | LQ080Y5DG03 |
| Jenama | SHARP |
| Saiz | 8.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 540 |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ080Y5DG03 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 174×104.4 mm |
| garis besar | 190×120 mm |
| permukaan | |
| kecerahan | 540 cd/m² (Typ.) |
| nisbah kontras | |
| warna paparan | 262K (6-bit), CIE193165% |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu | WLED |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit) |
| permohonan | CNS |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| LQ080V3DG01 | SHARP | 8.0 | 640×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| LQ080Y5DG02 | SHARP | 8.0 | 800×480 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| AT102TN03 V.8 | Innolux | 10.2 | 800×480 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LQ058T5DG30 | SHARP | 5.8 | 480×240 |
| LQ058T5DR02 | SHARP | 5.8 | 480×272 |
| LTA070B052F | TOSHIBA | 7.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| PM061WX1 | E Ink | 6.1 | 800×480 |
| YX-CM043-QN05-56 | 4.3 | 480×272 |
