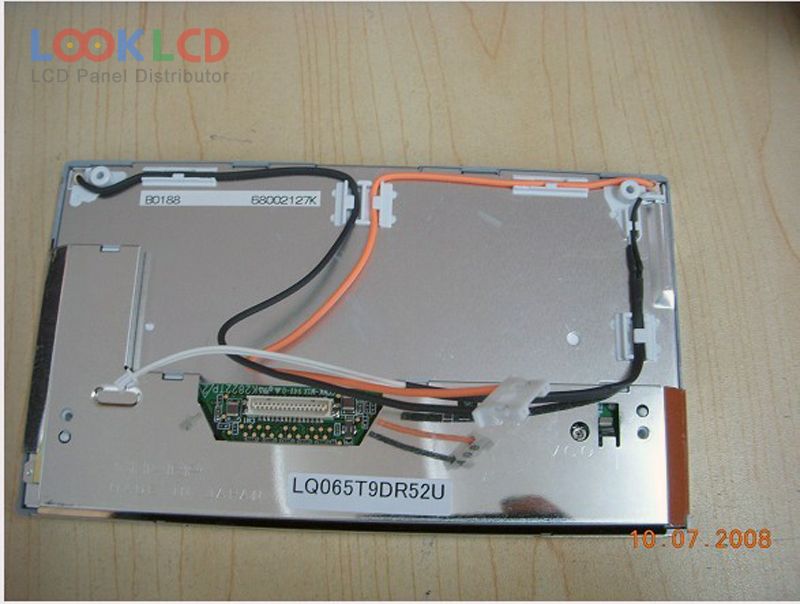

| Nombor Bahagian | LQ065T9DR52U |
| Jenama | SHARP |
| Saiz | 6.5 |
| Permohonan | CNS |
| Resolusi | 400×240 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 60:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ065T9DR52U |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 6.5 inch |
| resolusi | 400(RGB)×240 , WQVGA |
| mod paparan | TN, Normally White, Transflective |
| kawasan aktif | 143.4×79.326 mm |
| garis besar | 155×89.2 mm |
| permukaan | Antiglare, Antireflection |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 60:1 (Min.)(Transmissive)5:1 (Typ.)(Reflective) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 10/25 (Typ.)(Tr/Td) |
| sudut pandangan | 50/50/40/45 (Typ.)(CR≥5)(L/R/U/D) |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 31 pins |
| voltan masukan | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| permohonan | CNS |
