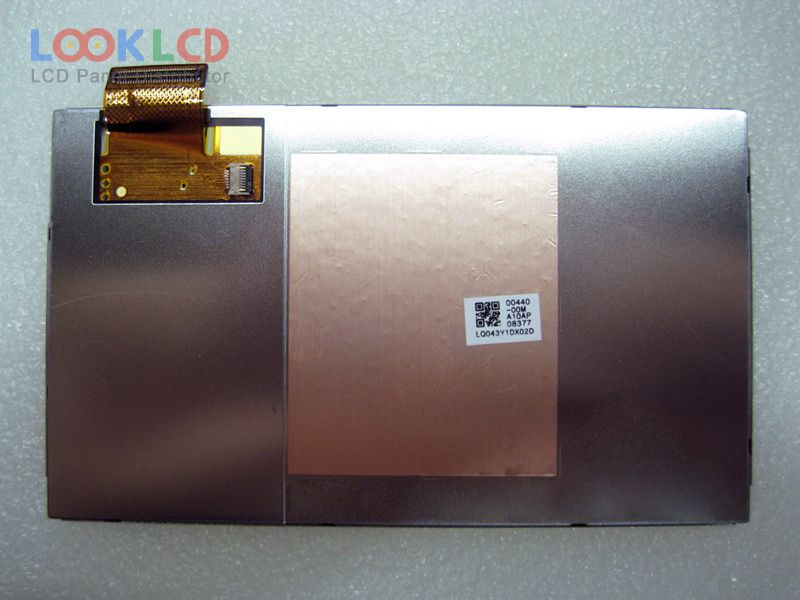

| Nombor Bahagian | LQ043Y1DX02 |
| Jenama | SHARP |
| Saiz | 4.3 |
| Permohonan | MPH |
| Resolusi | 480×800 |
| Komposisi | LCM |
| Kecerahan | 340 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ043Y1DX02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.3 inch |
| resolusi | 480(RGB)×800 , WVGA |
| mod paparan | ASV, Normally Black, Transmissive |
| kawasan aktif | 56.16×93.6 mm |
| garis besar | 62.46×105.9×2.3 mm |
| permukaan | Hard coating (3H) |
| kecerahan | 340 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193172% |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 8S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| voltan masukan | 3.3/2.6V (Typ.)(VCI/VDDIO) |
| permohonan | MPH |
