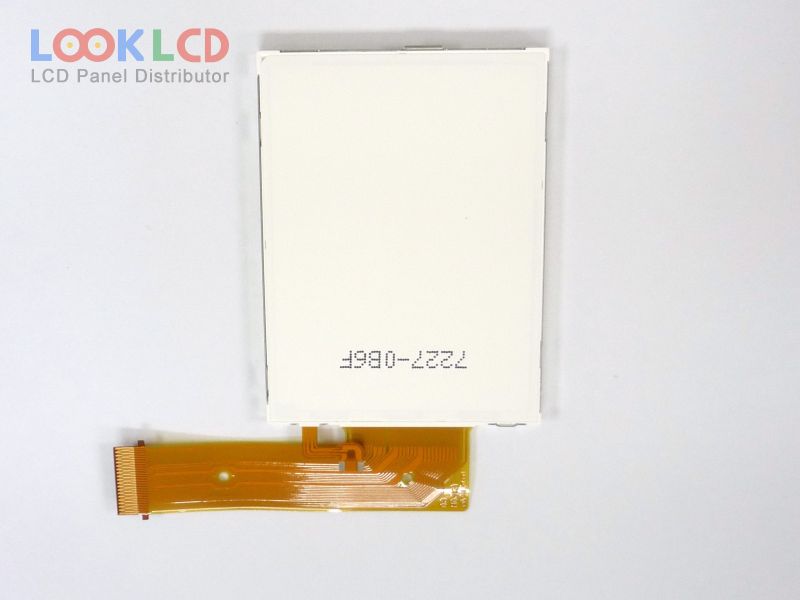

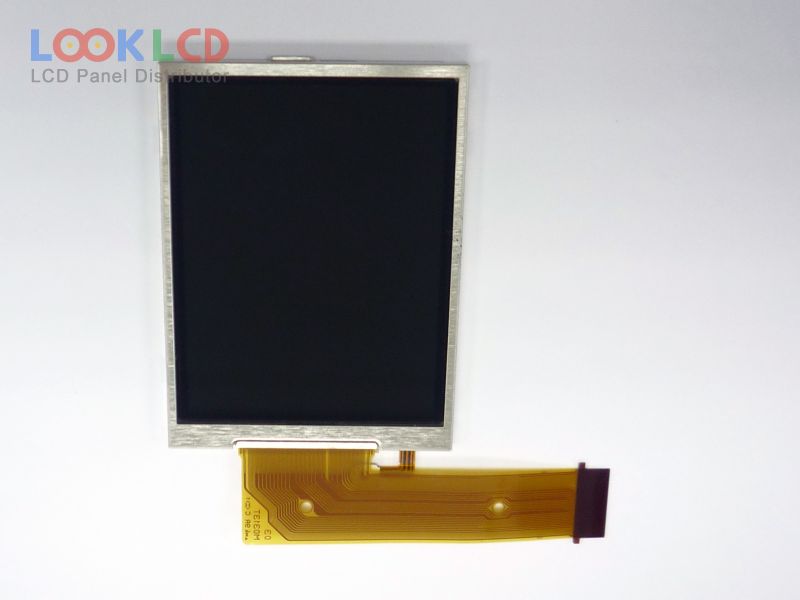

| Nombor Bahagian | LQ025A3DD01 |
| Jenama | SHARP |
| Saiz | 2.5 |
| Permohonan | DSC |
| Resolusi | 480×240 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 400:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Serial RGB |
| jenama panel | SHARP |
| model panel | LQ025A3DD01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.5 inch |
| resolusi | 480×240 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 49.89×37.44 mm |
| garis besar | 58.85×43.55 mm |
| permukaan | Clear, Hard coating (2H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193135% |
| masa tindak balas | 30/50 (Typ.)(Tr/Td) |
| sudut pandangan | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 3S1PWLEDWithout Driver |
| antara muka isyarat | Serial RGB (8-bit) + SPI, 39 pins |
| permohonan | DSC |
| A025DN01 V9 | AUO | 2.5 | 320×240 |
| H245QBN02.0 | AUO | 2.5 | 240×432 |
| LH250Q01-TH02 | LG Display | 2.5 | 320×240 |
| LMS246GF06 | Samsung | 2.5 | 320×240 |
| LQ025A3DD01 | SHARP | 2.5 | 480×240 |
| LQ025Q3DW01 | SHARP | 2.5 | 320×240 |
| LTV250QV-F03 | Samsung | 2.5 | 320×240 |
| PA025XSF | E Ink | 2.5 | 480×234 |
| TD025THEB5 | TPO | 2.5 | 320×240 |
| TD025THEE6 | TPO | 2.5 | 640×240 |
| A015AN03 | AUO | 1.46 | 280×220 |
| A024CN02 VR | AUO | 2.4 | 480×234 |
| A027DN01 VR | AUO | 2.7 | 320×240 |
| A027DTN01.3 | AUO | 2.7 | 320×240 |
| A030DN01 VC | AUO | 3.0 | 320×240 |
| A030DN05 V0 | AUO | 3.0 | 320×240 |
| L3F04X-80300C | Epson | 0.48 | 1024×768 |
| LH250Q01-TH02 | LG Display | 2.5 | 320×240 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
