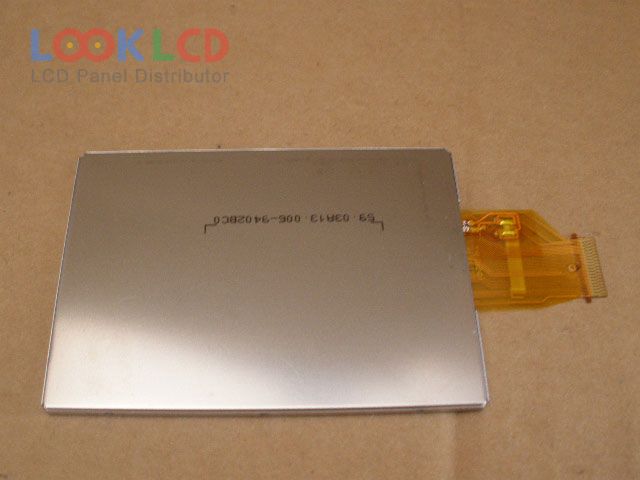

| Nombor Bahagian | A030DN01 VC |
| Jenama | AUO |
| Saiz | 3.0 |
| Permohonan | DSC |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 300:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Serial RGB |
| jenama panel | AUO |
| model panel | A030DN01 VC |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.0 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 60×45 mm |
| garis besar | 70.2×51.4 mm |
| permukaan | Hard coating |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 10/25 (Typ.)(Tr/Td) |
| sudut pandangan | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S1PWLEDWithout Driver |
| antara muka isyarat | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| voltan masukan | 3.3/15/-10V (Typ.)(VDD/VGH/VGL) |
| permohonan | DSC |
