AUO A027DTN01.3 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

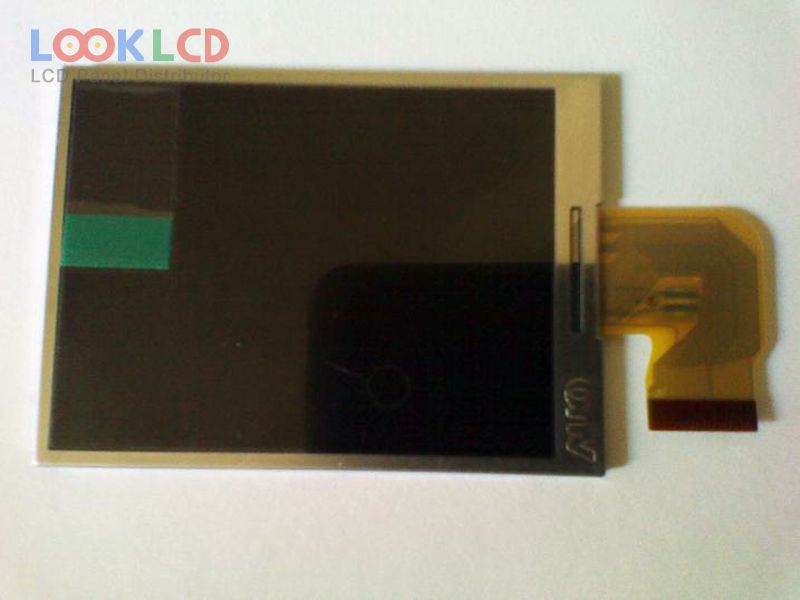

A027DTN01.3

A027DTN01.3
A027DTN01.3 thumb
Jenama
AUO
Saiz
2.7
Permohonan
DSC
Resolusi
320×240
Komposisi
LCM
Kecerahan
400
CR
400:1
Warna
16.7M
Lampu latar
WLED
Antara muka
Serial RGB
In Stock
14059
Spesifikasi

Nombor Bahagian A027DTN01.3
JenamaAUO
Saiz2.7
PermohonanDSC
Resolusi320×240
KomposisiLCM
Kecerahan400
CR400:1
Warna16.7M
Lampu latarWLED
Antara mukaSerial RGB
jenama panelAUO
model panelA027DTN01.3
jenis panel a-Si TFT-LCD , LCM
saiz panel2.7 inch
resolusi320(RGB)×240 , QVGA
mod paparanTN, Normally White, Transmissive
kawasan aktif54×40.5 mm
garis besar63.5×46.6×2.4 mm
permukaanHard coating
kecerahan400 cd/m² (Typ.)
nisbah kontras400:1 (Typ.)
warna paparan16.7M (8-bit)
masa tindak balas10/25 (Typ.)(Tr/Td)
sudut pandangan60/60/50/60 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu2S1PWLEDWithout Driver
antara muka isyaratSerial RGB (8-bit) + SPI, CCIR601/656, 39 pins
voltan masukan3.3V (Typ.)
permohonanDSC
