LG Display LM230WF5-TLB1 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

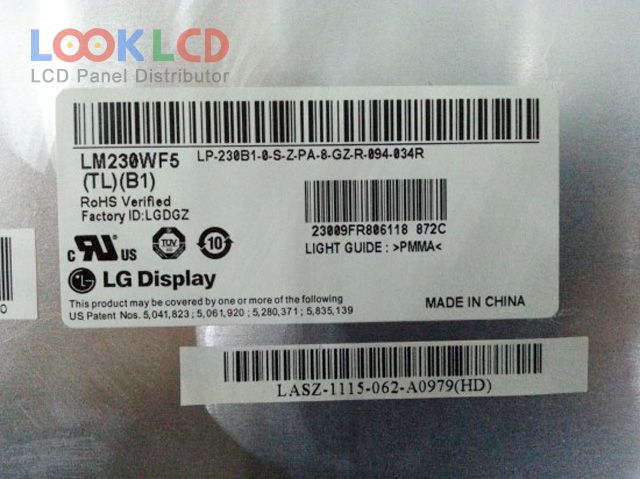

LM230WF5-TLB1

LM230WF5-TLB1
LM230WF5-TLB1 thumb
Jenama
LG Display
Saiz
23.0
Permohonan
DMPC
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
250
CR
1000:1
Warna
16.7M
Lampu latar
WLED
Antara muka
LVDS
In Stock
3434
Spesifikasi

Nombor Bahagian LM230WF5-TLB1
JenamaLG Display
Saiz23.0
PermohonanDMPC
Resolusi1920×1080
KomposisiLCM
Kecerahan250
CR1000:1
Warna16.7M
Lampu latarWLED
Antara mukaLVDS
jenama panelLG Display
model panelLM230WF5-TLB1
jenis panel a-Si TFT-LCD , LCM
saiz panel23.0 inch
resolusi1920(RGB)×1080 , FHD
mod paparanTN, Normally White, Transmissive
kawasan aktif509.184×286.416 mm
garis besar533.2×312×11.5 mm
permukaanGlare (Haze 0%), Hard coating (2H)
kecerahan250 cd/m² (Typ.)
nisbah kontras1000:1 (Typ.)
warna paparan16.7M (6-bit + Hi-FRC)
masa tindak balas1.3/3.7 (Typ.)(Tr/Td)
sudut pandangan85/85/75/85 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu3 stringsWLEDWithout Driver
antara muka isyaratLVDS (2 ch, 8-bit), 30 pins
voltan masukan5.0V (Typ.)
permohonanDMPC
Model Keluarga
LM230WF1-TLA5 LG Display 23.0 1920×1080
LM230WF2-SLA2 LG Display 23.0 1920×1080
LM230WF3-SLB1 LG Display 23.0 1920×1080
LM230WF3-SLB2 LG Display 23.0 1920×1080
LM230WF3-SLE1 LG Display 23.0 1920×1080
LM230WF3-SLK1 LG Display 23.0 1920×1080
LM230WF3-SSA1 LG Display 23.0 1920×1080
LM230WF5-TLB1 LG Display 23.0 1920×1080
LM230WF5-TLF4 LG Display 23.0 1920×1080
LM230WF5-TLH1 LG Display 23.0 1920×1080
