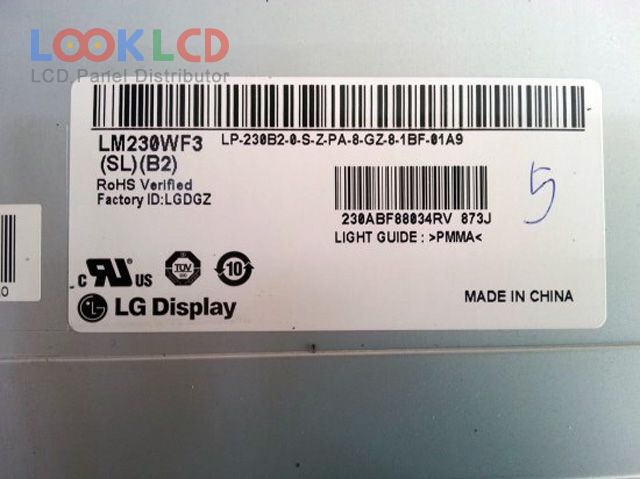

| Nombor Bahagian | LM230WF3-SLB2 |
| Jenama | LG Display |
| Saiz | 23.0 |
| Permohonan | DMPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | LG Display |
| model panel | LM230WF3-SLB2 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 23.0 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | S-IPS, Normally Black, Transmissive |
| kawasan aktif | 509.184×286.416 mm |
| garis besar | 533.2×312×11 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193172% |
| masa tindak balas | 8 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 15S4PWLEDWithout Driver |
| antara muka isyarat | LVDS (2 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
