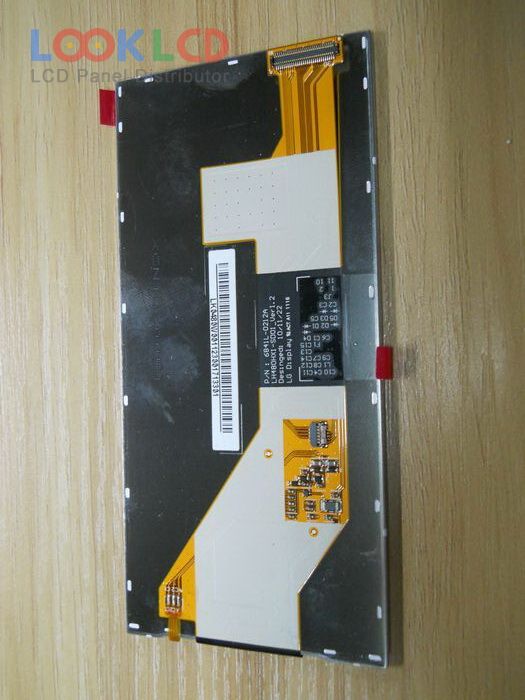

| Nombor Bahagian | LH480HX1-SD01 |
| Jenama | LG Display |
| Saiz | 4.8 |
| Permohonan | MPH |
| Resolusi | 480×1024 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 700:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | LG Display |
| model panel | LH480HX1-SD01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.8 inch |
| resolusi | 480(RGB)×1024 |
| mod paparan | IPS, Normally Black, Transmissive |
| kawasan aktif | 51.84×110.592 mm |
| garis besar | 57.64×121.45 mm |
| permukaan | |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 16.2M (6-bit + Dithering), CIE193168% |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 5S2PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| voltan masukan | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| permohonan | MPH |
