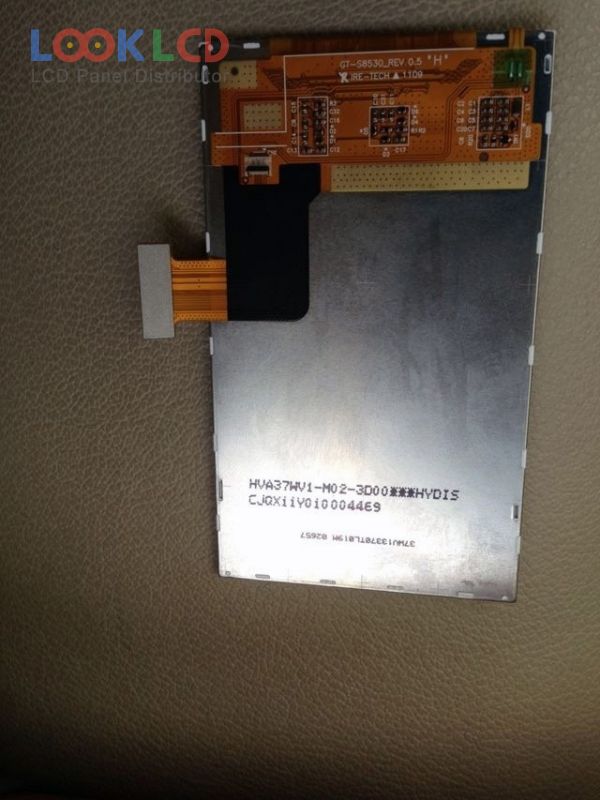

| Nombor Bahagian | HVA37WV1-M02 |
| Jenama | HYDIS |
| Saiz | 3.7 |
| Permohonan | MPH |
| Resolusi | 480×800 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 800:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | HYDIS |
| model panel | HVA37WV1-M02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.7 inch |
| resolusi | 480(RGB)×800 , WVGA |
| mod paparan | HFFS, Normally Black, Transmissive |
| kawasan aktif | 48.24×80.4 mm |
| garis besar | 52.54×89.5 mm |
| permukaan | |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.2M (6-bit + FRC), CIE193171% |
| masa tindak balas | 40 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 8S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| voltan masukan | 1.8/3.0V (Typ.)(IOVCC/VCC) |
| permohonan | MPH |
