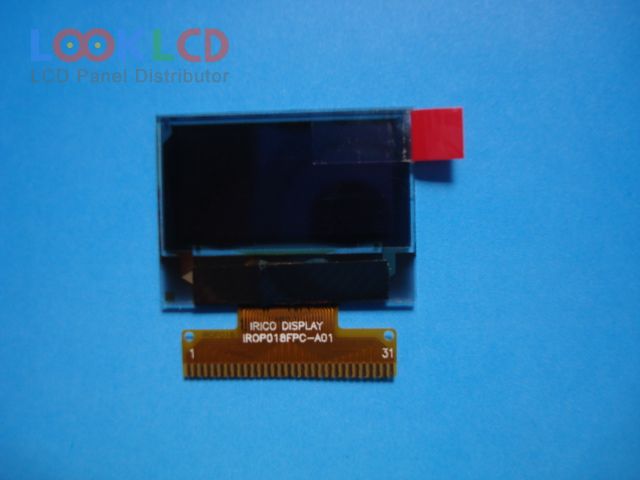

IROP018-010-0128064-W

IROP018-010-0128064-W
IROP018-010-0128064-W thumb
Jenama
Other
Saiz
0.96
Permohonan
MPH
Resolusi
128×64
Komposisi
OLED
Kecerahan
100
CR
2000:1
Warna
Mono(White)
Lampu latar
self
Antara muka
CPU/SPI/I²C
In Stock
19441
Spesifikasi

Nombor Bahagian IROP018-010-0128064-W
JenamaOther
Saiz0.96
PermohonanMPH
Resolusi128×64
KomposisiOLED
Kecerahan100
CR2000:1
WarnaMono(White)
Lampu latarself
Antara mukaCPU/SPI/I²C
jenama panelIRICO
model panelIROP018-010-0128064-W
jenis panel PM-OLED , OLED
saiz panel0.96 inch
resolusi128×64
kawasan aktif21.74×10.86 mm
garis besar26.4×19.7×1.36 mm
permukaanAntiglare
kecerahan100 cd/m² (Typ.)
nisbah kontras2000 : 1 (Min.)
warna paparanMono(White) (1-bit)
sudut pandangan80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
ic pemanduCOG Built-in SEPS200A
antara muka isyarat8-bit 6800/8080 parallel, SPI, I²C, 31 pins
voltan masukan2.8/12.0V (Typ.)(VDD/VCC)
permohonanMPH
Model Keluarga
IROP018-010-0128064-W Other 0.96 128×64
L3P10Y-81G00 Epson 0.96 1400×1050
OEL9M0083-B-E Other 0.96 128×64
OEL9M0083-G-E Other 0.96 128×64
OEL9M0083-R-E Other 0.96 128×64
OEL9M0083-W-E Other 0.96 128×64
RGS10128064WR010 RiTdisplay 0.96 128×64
UG-2864HLBEG01 WiseChip 0.96 128×64
UG-2864HMBEG01 WiseChip 0.96 128×64
UG-2864HSWEG01 WiseChip 0.96 128×64
