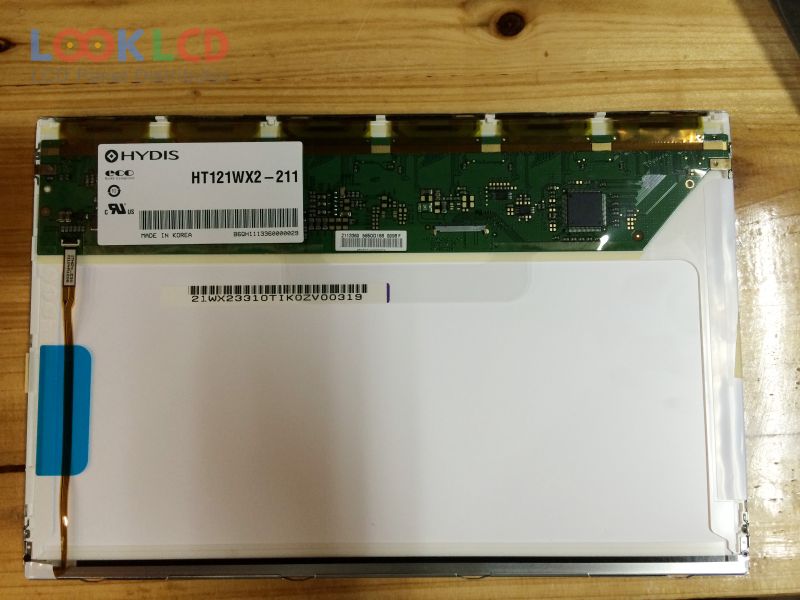

| Nombor Bahagian | HT121WX2-211 |
| Jenama | HYDIS |
| Saiz | 12.1 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | HYDIS |
| model panel | HT121WX2-211 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 261.12×163.2 mm |
| garis besar | 276.8×180 mm |
| permukaan | |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | |
| warna paparan | 262K (6-bit) |
| masa tindak balas | |
| sudut pandangan | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit) |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
